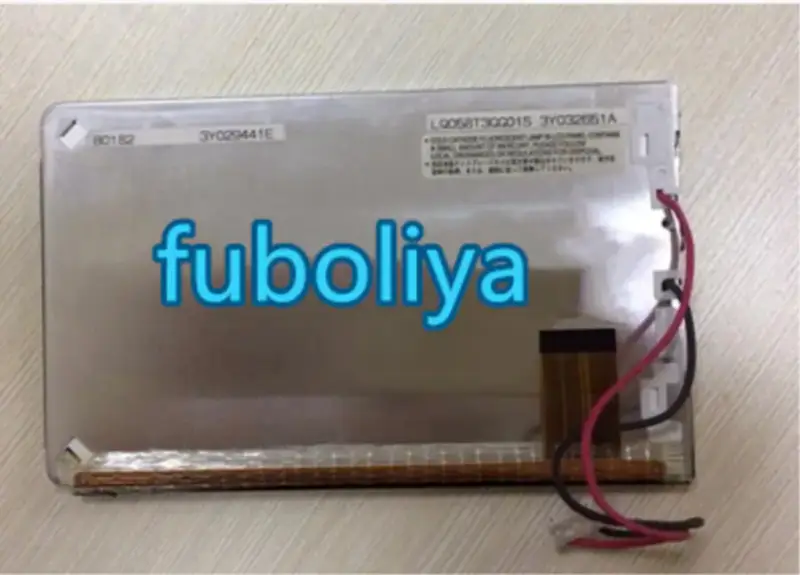

Sharp LQ058T3GG01 LCD

Specification

Model P/N:LQ058T3GG01
Brand:Sharp
Diagonal Size:5.8"
Resolution:400(RGB)×234 80PPI
Contrast Ratio:60 : 1 (Min.) (TM)
Viewing Angle:65/65/40/65 (Typ.)(CR≥5)
Color Depth:Full color
Backlight:1 pcs CCFL , 10K hours , No Driver
Signal Type:TFT Specific Analog RGB , 32 pins FPC
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:127.2(W)×71.8(H) mm
Bezel Opening:-
Treatment:Antiglare, Antireflection
Luminance:350 cd/m² (Typ.)
Outline(mm):145 × 89.2 × 8 (H×V×D)
Response:30/50 (Typ.)(Tr/Td) ms
Good View at:6 o'clock
Work Mode:TN, Normally White, Transmissive
Mass:140±10g
Used for:Portable DVD Player
Refresh Rate:-
Touchscreen:Without
Voltage Supply:5.3/13.0/3.9/-10.0V (Typ.)(VSH/VGH/VGLAC/VGLDC)
Max Ratings:Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 70 °C
