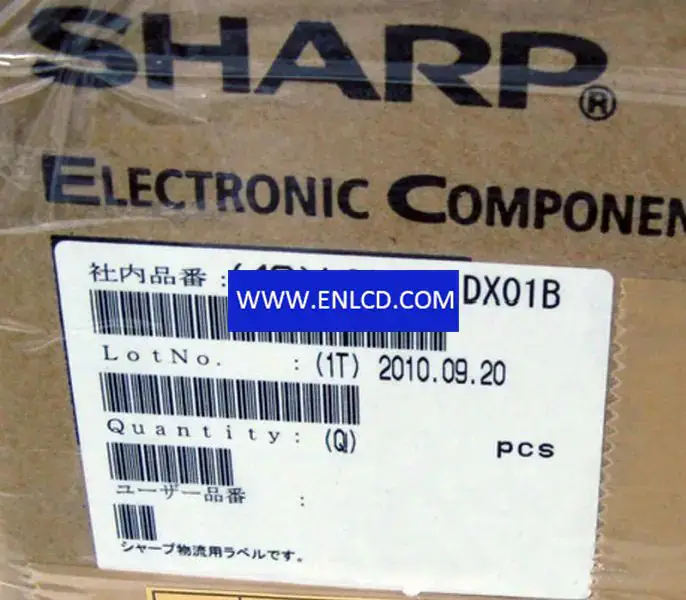

SHARP LQ043Y1DX01B LCD panel

Brand：SHARP
Diagonal Size：4.3 inch
Pixel Format：480(RGB)×800[WVGA]
Active Area：56.16(H)×93.6(V) mm
Bezel Area：-
Luminance：350 cd/m2 (Typ.)
View Direction：Symmetry
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Support Color：65K 72% (CIE1931)
Weight：TBD
Frame Rate： 60Hz
Model：LQ043Y1DX01B3 Compatible
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 62.46(H)×105.9(V)mm
Treatment：Hard coating (3H)
Contrast Ratio： 900:1 (Typ.) (TM)
Response Time：35 (Typ.)(Tr+Td)
Operating Mode： ASV, Normally Black, Transmissive
Light Source： WLED [8S1P], W/O Driver
Designed For： Mobile Phone,
Touch Panel：Without
Interface Type： 45 pinsParallel RGB, FPC
Power Supply： 3.0/2.6V (Typ.)(VCI/VDDIO)
Environment： Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 70 °C
