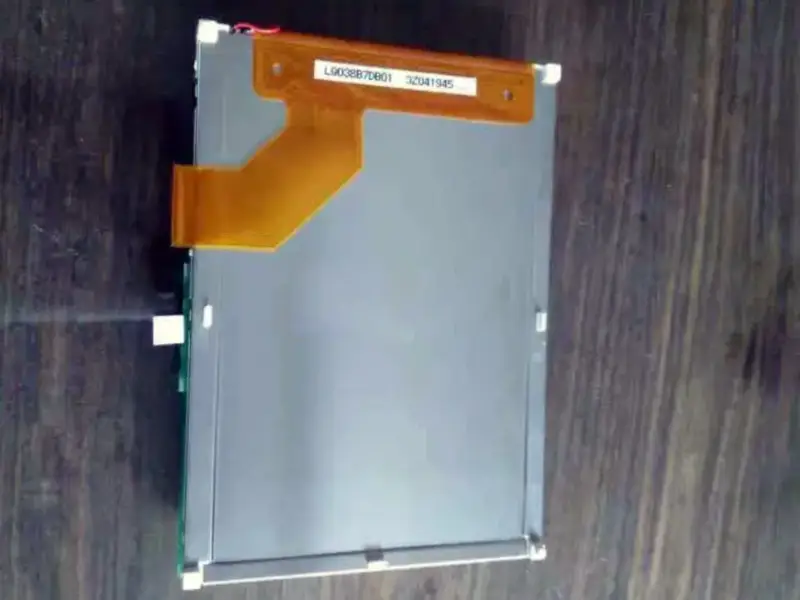

Sharp LQ038B7DB01 LCD

Specification

Model P/N:LQ038B7DB01
Brand:Sharp
Diagonal Size:3.8"
Resolution:320(RGB)×480, HVGA 153PPI
Contrast Ratio:60 : 1 (Typ.) (TM) 8:1 (Typ.) (RF)
Viewing Angle:40/40/40/50 (Typ.)(CR≥2)
Color Depth:262K
Backlight:No B/L
Signal Type:Parallel RGB (1 ch, 6-bit) , FPC 39 pins
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:52.8(W)×79.2(H) mm
Bezel Opening:-
Treatment:Clear, Hard coating
Luminance:-
Response:20/35 (Typ.)(Tr/Td) ms
Good View at:6 o'clock
Work Mode:TN, Normally White, Transflective
Mass:25.0±5.0g
Used for:Handheld & PDA
Refresh Rate:60Hz
Touchscreen:Without
Voltage Supply:4.8/3.3/13.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)
Max Ratings:Storage Temp.: -30 ~ 75 °C Operating Temp.: -10 ~ 60 °C
Outline (mm):64.9×92.3×2.2 (H×V×D)
