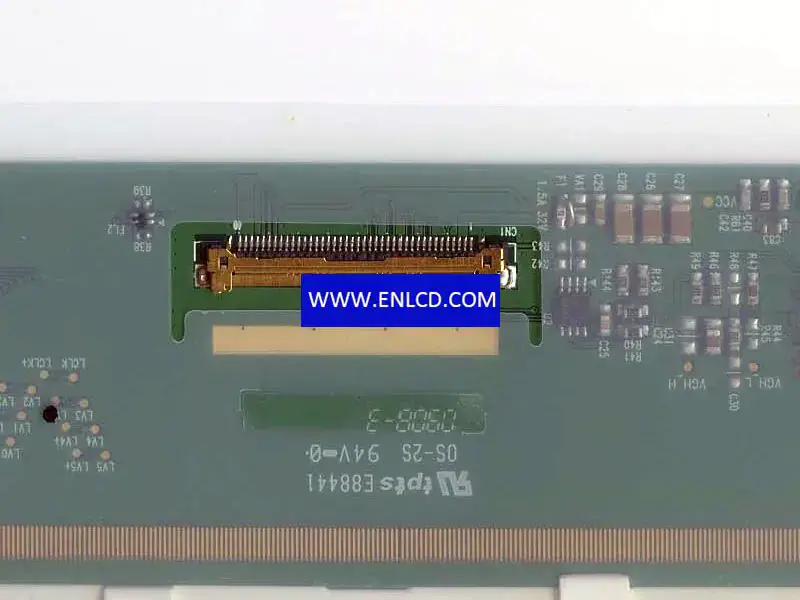

LG Display LP156WH2-TLE1 LCD panel

Manufacturer：LG Display
Model Name：LP156WH2-TLE1 (LGDCF01) 61 Compatible
Screen Size：15.6 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：1366(RGB)×768 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 344.232 × 193.536 (H×V)
Outline(mm)：359.3 × 209.5× 5.5 (H×V×D)
Bezel Area(mm)： 349.8 × 197.1 (H×V)
Treatment： Glare (Haze 0%), Hard coating (3H)
Luminance：220 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle： 40/40/10/30 (Min.)(CR≥10)
Response： 8 (Typ.)(Tr+Td) ms
Good View at： 6 o'clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K 60%(CIE1931)
Backlight：8S6PWLED, 15K hours, With LED Driver
Outline Shape： Wedge (PCBA Bent, Depth ≥5.2mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：LVDS (1 ch, 6-bit), Connector, 40 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
