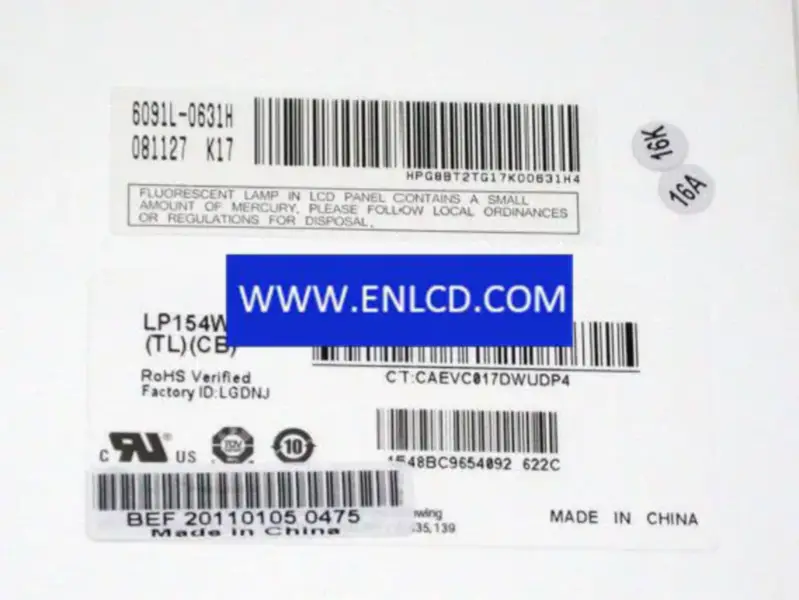

LP154WX4-TLCB LG Display LCD panel replacement for Laptop

Brand：LG.Philips LCD
Model：LP154WX4-TLCB (LPL3101) 27 Compatible
Diagonal Size：15.4 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1280(RGB)×800[WXGA]
Configuration： RGB Vertical Stripe
Active Area：331.2(H)×207(V) mm
Outline Dim.：344(H)×222(V)×6.5(D) mm
Bezel Area：335.0(H)×210.7(V) mm
Treatment：Glare (Haze 0%)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio： 600:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：16 (Typ.)(Tr+Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：CCFL[1 pcs], 12K hours, W/O Driver
Form Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (1 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C：：
