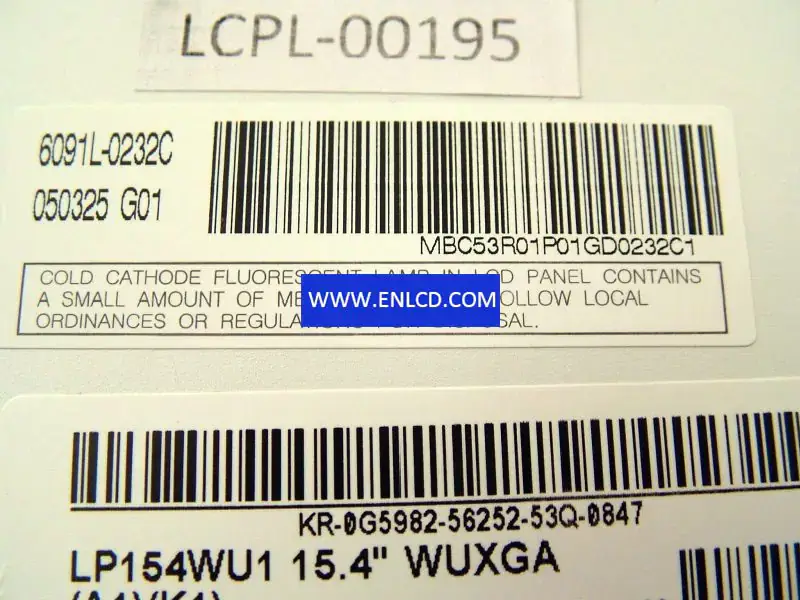

LG Display LP154WU1-A1K1 LCD panel

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
Brand: LG Display
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Quantity:





Panel Brand:LG.Philips LCD
Panel Model:LP154WU1-A1K1 (LPL0000) 3 Compatible
Panel Size:15.4 inch
Panel Type:a-Si TFT-LCD, LCM
Resolution:1920(RGB)×1200 , WUXGA
Pixel Format:RGB Vertical Stripe
Display Area:331.2(W)×207(H) mm
Bezel Opening:335.0(W)×210.7(H) mm
Brightness:185 cd/m2 (Typ.)
Contrast Ratio:300:1 (Min.) (TM)
Viewing Angle:65/65/50/50 (Typ.)(CR≥10)
Display Mode:TN, Normally White, Transmissive
Best View on:-
Response Time:25 (Typ.)(Tr+Td)
Display Colors:262K 45%(CIE1931)
Lamp Type:1 pcsCCFL, 10K hours, Without Driver
Frequency: 60Hz
Touch Screen:Without
Shape Style: Wedge (PCBA Bent, Depth ≥5.2mm)
Application: Laptop,
Signal Interface: LVDS (2 ch, 6-bit), 30 pins , Connector
Input Voltage:3.3V (Typ.)
Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
