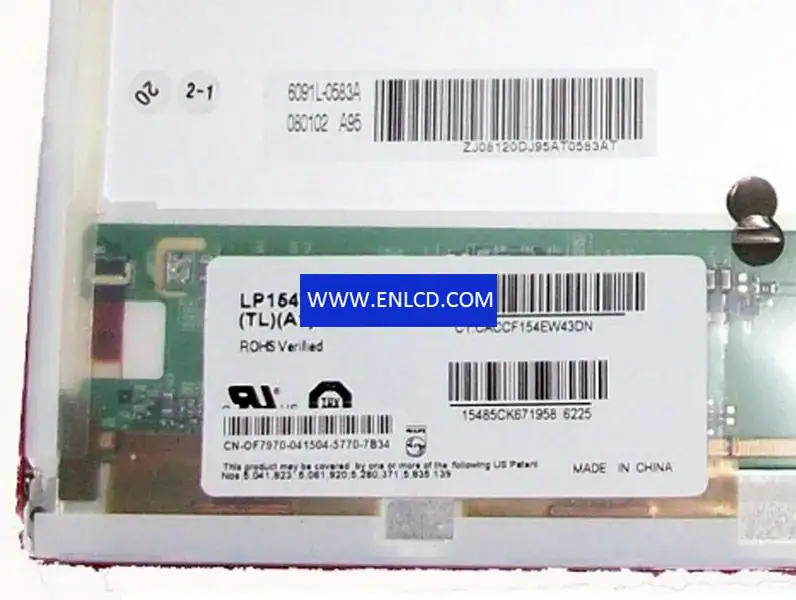

LP154WP2-TLA1 LG Display LCD panel replacement for Laptop

Panel Brand：LG.Philips LCD
Panel Size：15.4 inch
Resolution：1440(RGB)×900 , WXGA+
Display Area：331.344(W)×207.09(H) mm
Outline Size：344(W)×222(H)×6.1(D) mm
Brightness：300 cd/m2 (Typ.)
Viewing Angle：60/60/55/55 (Typ.)(CR≥10)
Best View on：-
Display Colors：262K45%(CIE1931)
Frequency： 60Hz
Shape Style：Wedge (PCBA Bent, Depth ≥5.2mm)
Panel Model：LP154WP2-TLA1 (APP9C67)5 Compatible
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：334.6(W)×210.4(H) mm
Surface：Antiglare (Haze 44%), Hard coating (2H)
Contrast Ratio：500:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：16 (Typ.)(Tr+Td)
Lamp Type： 10S6P WLED , 15K hours , Without Driver
Touch Screen：Without
Application： Laptop,
Signal Interface： LVDS (2 ch, 6-bit), 40 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
