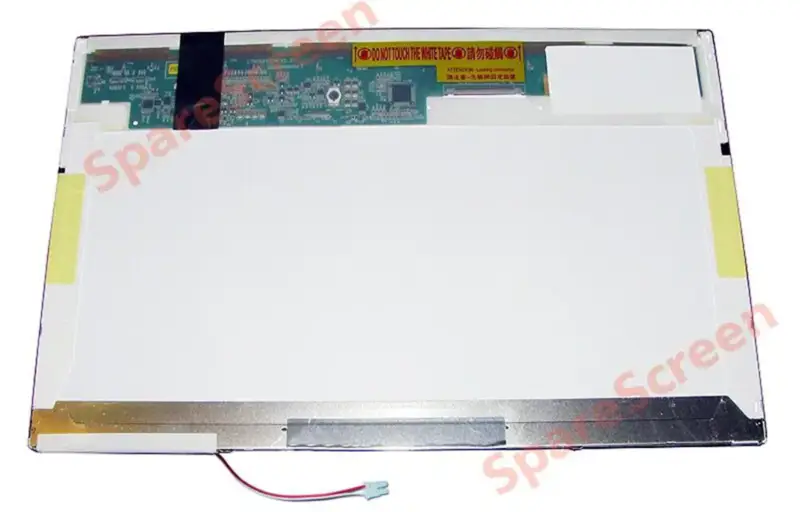

LG.Philips LP154W01-A5AG LCD

Specification

Model P/N:LP154W01-A5AG
Brand:LG.Philips LCD
Diagonal Size:15.4"
Resolution:1280(RGB)×800, WXGA 98PPI
Viewing Angle:-
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:331.2(W)×207(H) mm
Bezel Opening:335.0(W)×210.7(H) mm
Response Time:-
Outline Size:344(W)×222(H) ×6.5(D) mm
Surface:-
Best View on:6 o'clock
Display Colors:262K 45% NTSC
Lamp Type:1 pcs CCFL , Without Driver
Frequency:60Hz
Touch Screen:-
Application:Laptop
Signal Interface:LVDS (1 ch, 6-bit) , 30 pins Connector
Input Voltage:3.3V (Typ.)
Shape Style:Wedge (PCBA Bent, T≥5.2mm)
