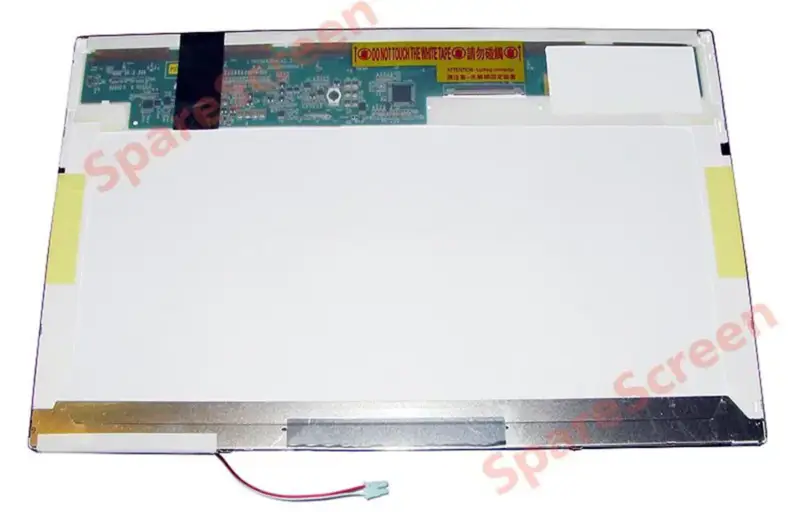

LG.Philips LP154W01-A3K4 LCD

Specification

Model P/N:LP154W01-A3K4
Brand:LG.Philips LCD
Diagonal Size:15.4"
Resolution:1280(RGB)×800, WXGA 98PPI
Brightness:150 cd/m² (Typ.)
Contrast Ratio:300:1 (Typ.) (TM)
Viewing Angle:45/45/15/35 (Typ.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:331.2(W)×207(H) mm
Bezel Opening:335.0(W)×210.7(H) mm
Response Time:30 (Typ.)(Tr+Td)
Outline Size:344(W)×222(H) ×6.5(D) mm
Surface:Antiglare, Hard coating (3H)
Best View on:6 o'clock
Display Colors:262K 45% NTSC
Lamp Type:1 pcs CCFL , 10K hours , Without Driver
Frequency:60Hz
Touch Screen:Without
Application:Laptop
Signal Interface:LVDS (1 ch, 6-bit) , 30 pins Connector
Input Voltage:3.3V (Typ.)
Shape Style:Wedge (PCBA Bent, T≥5.2mm)
