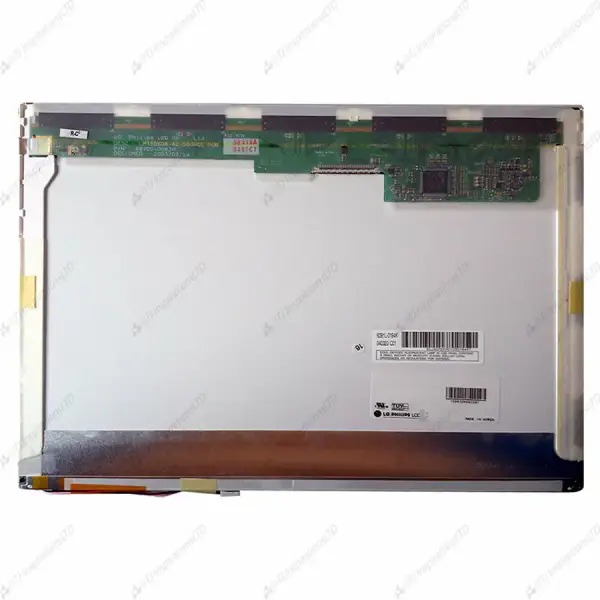

LG.Philips LP150X05-C2 LCD

Specification

Model P/N:LP150X05-C2
Brand:LG.Philips LCD
Diagonal Size:15.0"
Resolution:1024(RGB)×768, XGA 85PPI
Contrast Ratio:250:1 (Typ.) (TM)
Viewing Angle:45/45/15/35 (Typ.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:304.128(W)×228.096(H) mm
Bezel Opening:307.5(W)×231.4(H) mm
Outline Dim:317.3(H)×241.5(V) ×6(D) mm
Treatment:Antiglare, Hard coating (3H)
Luminance:200 cd/m² (Typ.)
View Direction:6 o'clock
Response Time:10/20 (Typ.)(Tr/Td)
Operating Mode:TN, Normally White, Transmissive
Support Color:262K 42% NTSC
Light Source:CCFL [1 pcs] , 10K hours , W/O Driver
Designed For:Laptop
Frame Rate:60Hz
Touch Panel:Without
Interface Type:LVDS (1 ch, 6-bit) , 30 pins Connector
Power Supply:3.3V (Typ.)
Form Style:Wedge (PCBA Bent, T≥5.2mm)
