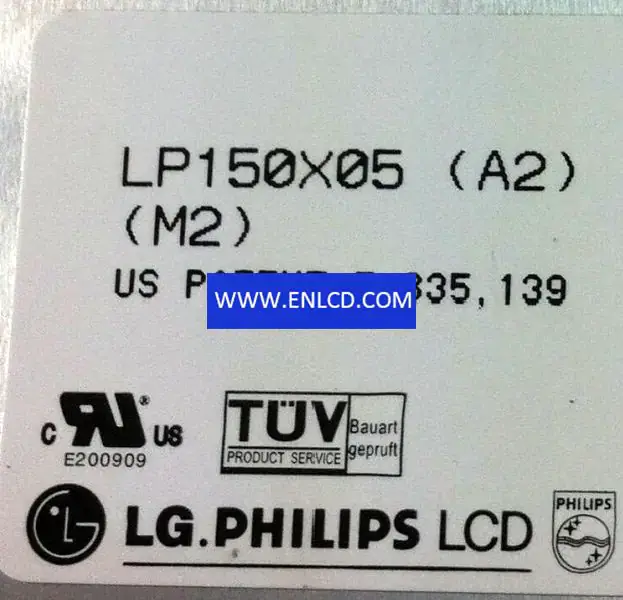

LG.Philips LP150X05-A2M2 LCD

Specification

Model P/N:LP150X05-A2M2
Brand:LG.Philips LCD
Diagonal Size:15.0"
Resolution:1024(RGB)×768, XGA 85PPI
Contrast Ratio:250 : 1 (Typ.) (TM)
Viewing Angle:45/45/15/35 (Typ.)(CR≥10)
Color Depth:262K 42% NTSC
Backlight:1 pcs CCFL , 10K hours , No Driver
Signal Type:LVDS (1 ch, 6-bit) , 30 pins Connector
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:304.128(W)×228.096(H) mm
Bezel Opening:307.5(W)×231.4(H) mm
Treatment:Antiglare, Hard coating (3H)
Luminance:160 cd/m² (Typ.)
Outline(mm):317.3 × 241.5 × 6 (H×V×D)
Response:10/20 (Typ.)(Tr/Td) ms
Good View at:6 o'clock
Work Mode:TN, Normally White, Transmissive
Used for:Laptop
Refresh Rate:60Hz
Touchscreen:Without
Voltage Supply:3.3V (Typ.)
Max Ratings:Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Outline Shape:Wedge (PCBA Bent, T≥5.2mm)
