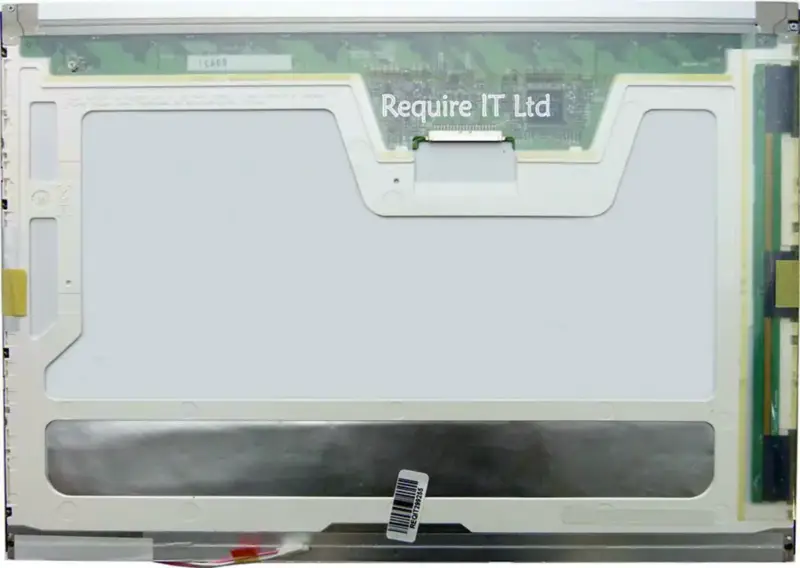

LG.Philips LP150X04-B2 LCD

Specification

Model P/N:LP150X04-B2
Brand:LG.Philips LCD
Diagonal Size:15.0"
Resolution:1024(RGB)×768, XGA 85PPI
Brightness:200 cd/m² (Typ.)
Contrast Ratio:250:1 (Typ.) (TM)
Viewing Angle:60/60/45/45 (Typ.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:304.128(W)×228.096(H) mm
Bezel Opening:307.6(W)×231.6(H) mm
Response Time:10/20 (Typ.)(Tr/Td)
Outline Size:315.8(W)×240.5(H) ×6.8(D) mm
Surface:Antiglare (Haze 25%), Antireflection
Best View on:-
Display Colors:262K
Lamp Type:1 pcs CCFL , 10K hours , Without Driver
Frequency:60Hz
Touch Screen:Without
Application:Laptop
Signal Interface:LVDS (1 ch, 6-bit) , 20 pins Connector
Input Voltage:3.3V (Typ.)
Shape Style:Wedge (PCBA Bent, T≥5.2mm)
