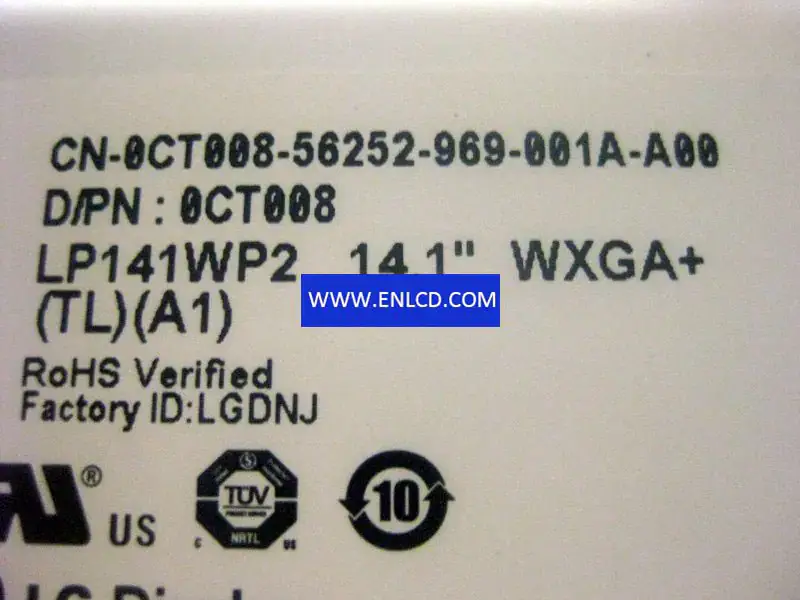

LG Display LP141WP2-TLA1 LCD panel

Brand：LG Display
Model：LP141WP2-TLA1 (LPL0140) 3 Compatible
Diagonal Size：14.1 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1440(RGB)×900[WXGA+]
Configuration： RGB Vertical Stripe
Active Area：303.69(H)×189.81(V) mm
Outline Dim.：319.5(H)×206.5(V)×5.5(D) mm
Bezel Area：308.4(H)×193.8(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：300 cd/m2 (Typ.)
Contrast Ratio： 300:1 (Min.) (TM)
View Direction：6 o’clock
Response Time：16 (Typ.)(Tr+Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：WLED[9S6P], 10K hours, With LED Driver
Form Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 50 pinsLVDS (2 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
