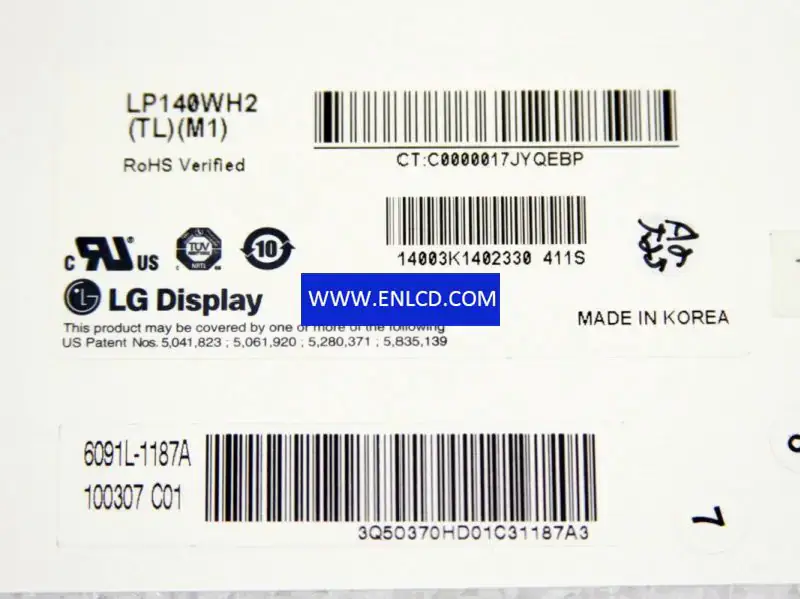

LG Display LP140WH2-TLM1 LCD panel

Brand：LG Display
Model：LP140WH2-TLM1 (LGD02A3) 2 Compatible
Diagonal Size：14.0 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：309.399(H)×173.952(V) mm
Outline Dim.：322.3(H)×204.6(V)×3.6(D) mm
Bezel Area：313.40(H)×177.45(V) mm
Treatment：Antiglare， Hard coating (2H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：350:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：16 (Typ.)(Tr+Td)
Viewing Angle：40/40/10/30 (Min.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：262K 45%(CIE1931)
Light Source：WLED[8S4P]， 12K hours， With LED Driver
Form Style： Flat (PCBA Flat， Depth 3.4~4.0mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (1 ch， 6-bit)， Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
