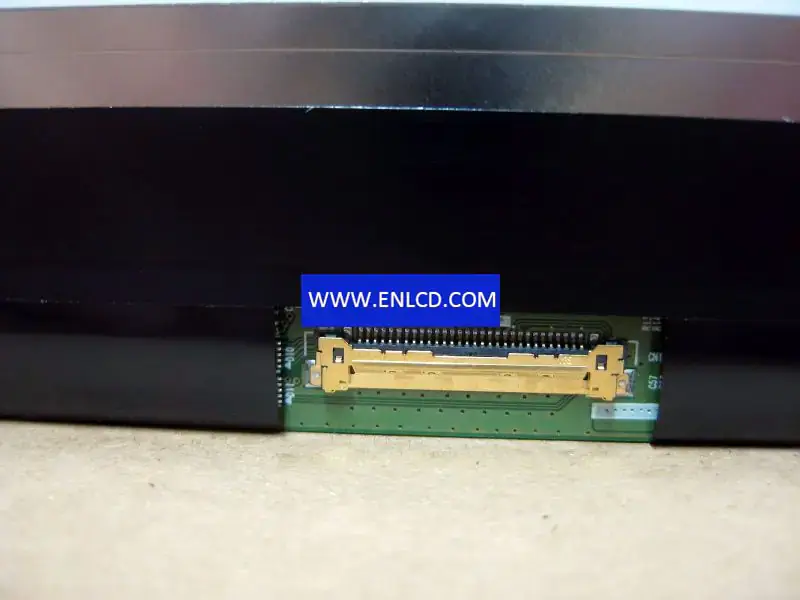

LG Display LP140WF1-SPU1 LCD panel

Panel Brand：LG Display
Panel Model：LP140WF1-SPU1 (LGD03FF)
Panel Size：14.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1920(RGB)×1080 , FHD
Pixel Format：RGB Vertical Stripe
Display Area：309.31(W)×173.99(H) mm
Bezel Opening：312.5(W)×177.1(H) mm
Outline Size：320.4(W)×205.1(H)×3(D) mm
Surface：Glare (Haze 0%)
Brightness：330 cd/m2 (Typ.)
Contrast Ratio：700:1 (Typ.) (TM)
Viewing Angle：80/80/80/80 (Min.)(CR≥10)
Display Mode：AH-IPS, Normally Black, Transmissive
Best View on：Symmetry
Response Time：35 (Typ.)(Tr+Td)
Display Colors：262K 75%(CIE1931)
Lamp Type：WLED, 10K hours, With LED Driver
Frequency： 60Hz
Touch Screen：Without
Shape Style： Slim (PCBA Flat, Depth ≤3.2mm)
Application： Laptop,
Signal Interface： eDP (2 Lanes), 30 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
