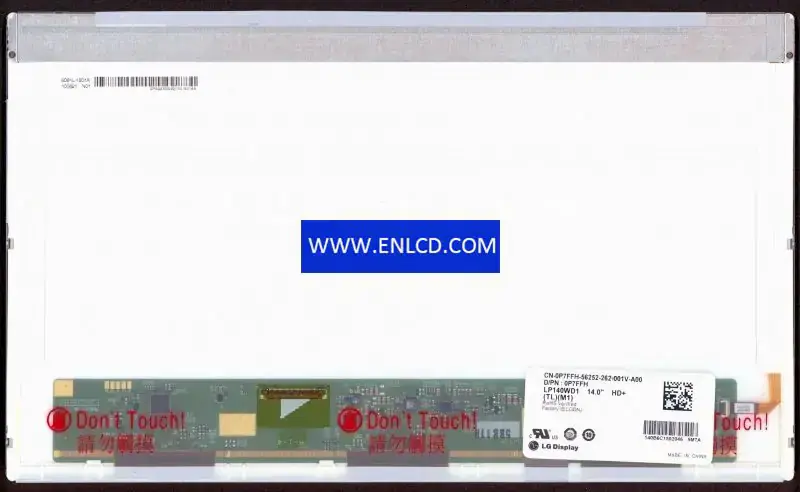

LP140WD1-TLM1 LG Display LCD panel replacement for Laptop

Panel Brand：LG Display
Panel Model：LP140WD1-TLM1 (LGD02DF) 3 Compatible
Panel Size：14.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1600(RGB)×900 , HD+
Pixel Format：RGB Vertical Stripe
Display Area：309.12(W)×173.88(H) mm
Bezel Opening：313.85(W)×178.95(H) mm
Outline Size：323.5(W)×192(H)×5.2(D) mm
Surface：Antiglare, Hard coating (3H)
Brightness：300 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：40/40/10/30 (Min.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：16 (Typ.)(Tr+Td)
Display Colors：262K 45%(CIE1931)
Lamp Type：WLED, 15K hours, With LED Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (2 ch, 6-bit), 40 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
