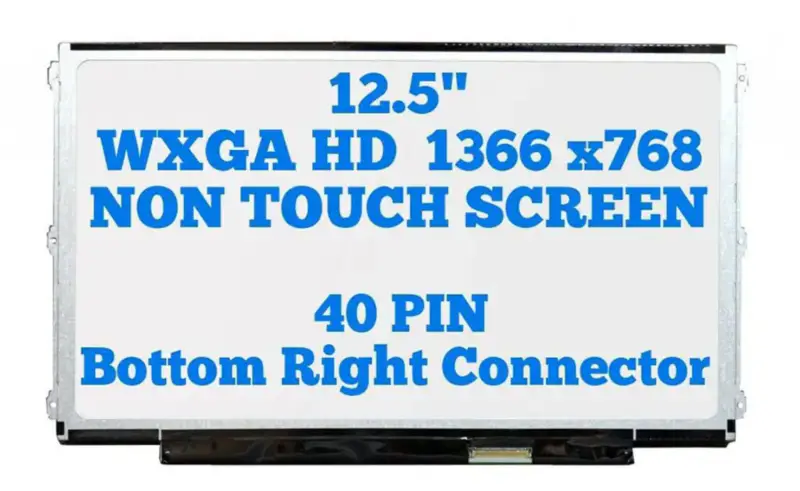

LG Display LP125WH2-TLB2 LCD

Specification

Model P/N:LP125WH2-TLB2
Brand:LG Display
Diagonal Size:12.5"
Resolution:1366(RGB)×768, WXGA 125PPI
Contrast Ratio:300:1 (Typ.) (TM)
Viewing Angle:-
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:276.615(W)×155.52(H) mm
Bezel Opening:280.3(W)×159.52(H) mm
Luminance:200 cd/m² (Typ.)
View Direction:-
Response Time:16 (Typ.)(Tr+Td)
Operating Mode:TN, Normally White, Transmissive
Support Color:262K
Light Source:WLED , 12K hours , With LED Driver
Designed For:Laptop
Frame Rate:60Hz
Touch Panel:Without
Interface Type:LVDS (1 ch, 6-bit) , 40 pins Connector
Power Supply:3.3V (Typ.)
Form Style:Flat (PCBA Flat, T3.4~4.0mm)
