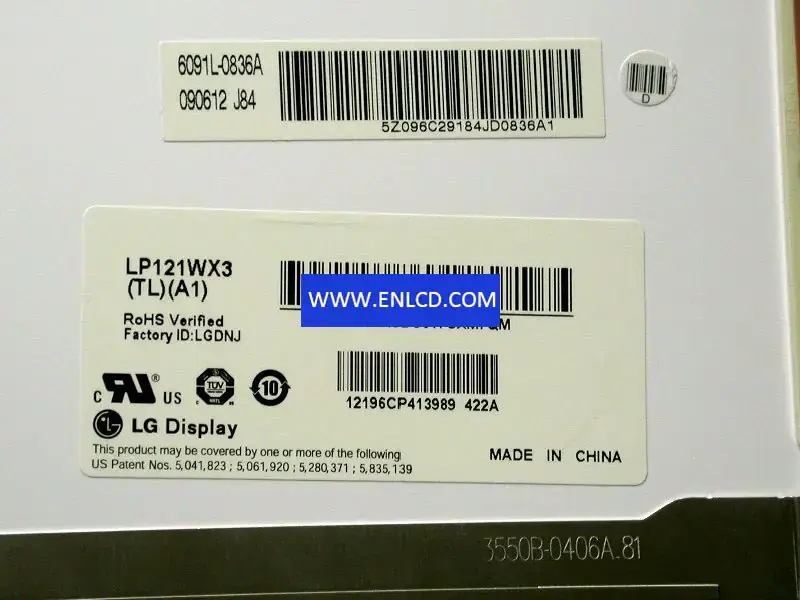

LG Display LP121WX3-TLA1 LCD panel

Manufacturer：LG.Philips LCD
Model Name：LP121WX3-TLA1 (LGD01AA) 5 Compatible
Screen Size：12.1 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：1280(RGB)×800 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 261.12 × 163.2 (H×V)
Outline(mm)：275.8 × 178.1× 5.5 (H×V×D)
Bezel Area(mm)： 264.76 × 166.6 (H×V)
Treatment： Glare (Haze 0%)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle： 40/40/10/30 (Min.)(CR≥10)
Response： 16 (Typ..)(Tr+Td) ms
Good View at： 6 o’clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K 45%(CIE1931)
Backlight：WLED, 12K hours, With LED Driver
Outline Shape： –
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：LVDS (1 ch, 6-bit), Connector, 40 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
