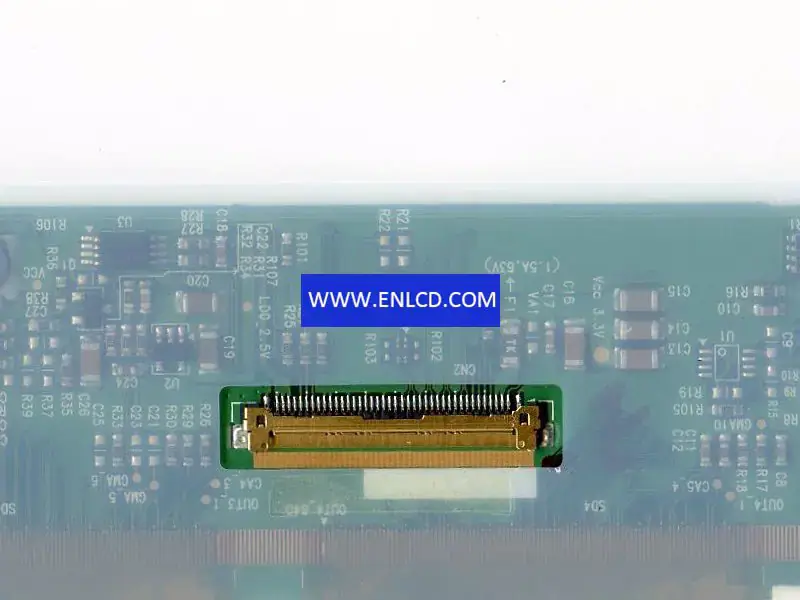

LG Display LP101WH1-TLB2 LCD panel

Panel Brand：LG Display
Panel Model：LP101WH1-TLB2 (LGD01EB) 1 Compatible
Panel Size：10.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1366(RGB)×768 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：222.73(W)×125.22(H) mm
Bezel Opening：226.0(W)×128.7(H) mm
Outline Size：235(W)×143(H)×5.2(D) mm
Surface：Antiglare
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：300:1 (Min.) (TM)
Viewing Angle：30/30/10/20 (Min.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：16 (Typ.)(Tr+Td)
Display Colors：262K
Lamp Type：4 stringsWLED, 10K hours, With LED Driver
Frequency： 60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： LVDS (1 ch, 6-bit), 40 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
