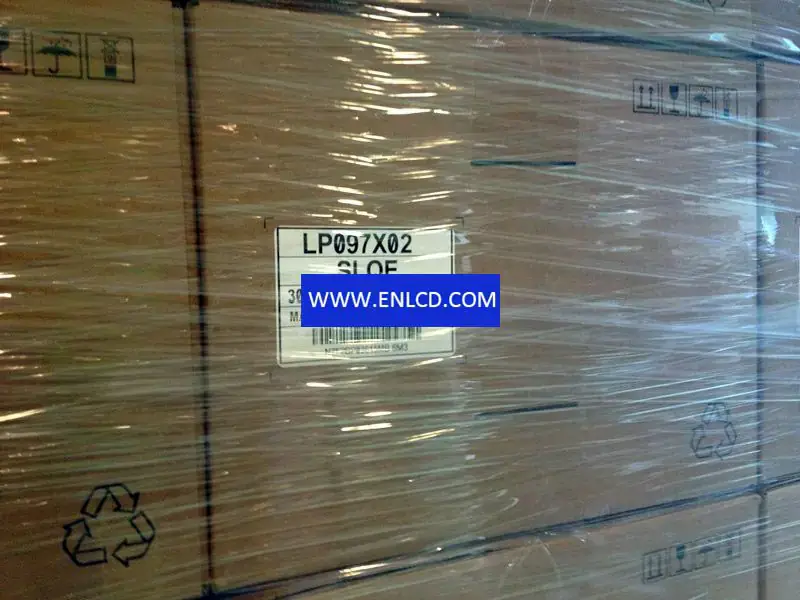

LG Display LP097X02-SLQE LCD panel

Brand：LG Display
Model：LP097X02-SLQE4 Compatible
Diagonal Size：9.7 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1024(RGB)×768[XGA]
Configuration： RGB Vertical Stripe
Active Area：196.608(H)×147.456(V) mm
Outline Dim.：210.32(H)×164.37(V)×5.23(D) mm
Bezel Area：201.01(H)×151.86(V) mm
Treatment：Glare (Haze 0%), Hard coating (3H)
Luminance：300 cd/m2 (Typ.)
Contrast Ratio： 600:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：35 (Typ.)(Tr+Td)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Operating Mode：S-IPS, Normally Black, Transmissive
Support Color：262K
Light Source：WLED[6S6P], 10K hours, W/O Driver
Weight： 148g (Max.)
Designed For： Pad & Tablet,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (1 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
