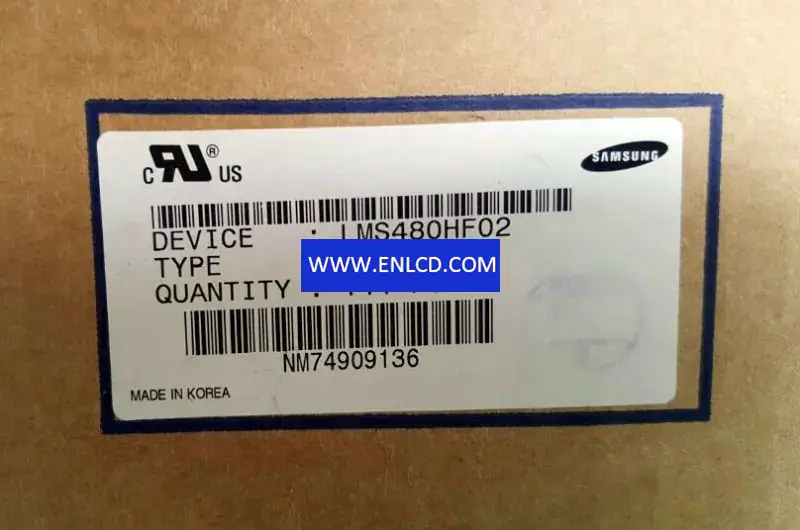

Samsung LMS480HF02 LCD panel

Brand：SAMSUNG
Diagonal Size：4.8 inch
Pixel Format：480(RGB)×272[WQVGA]
Active Area：105.84(H)×59.98(V) mm
Bezel Area：108.64(H)×62.78(V) mm
Luminance：400 cd/m2 (Typ.)
View Direction：6 o’clock
Viewing Angle：65/65/50/55 (Typ.)(CR≥10)
Support Color：16.7M
Weight：65.0g (Max.)
Frame Rate： 60Hz
Model：LMS480HF02
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 114.24(H)×72.88(V)mm
Treatment：-
Contrast Ratio： 400:1 (Typ.) (TM)
Response Time：5/25 (Typ.)(Tr/Td)
Operating Mode： TN, Normally White, TMR
Light Source： WLED [5S1P+6S1P], W/O Driver
Designed For： Portable Navigation, Pocket TV, MP4 PMP,
Touch Panel：Without
Interface Type： 45 pinsParallel RGB (1 ch, 8-bit), FPC
Power Supply： 2.5/3.3V (Typ.)(VDD)
Environment： Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 70 °C
