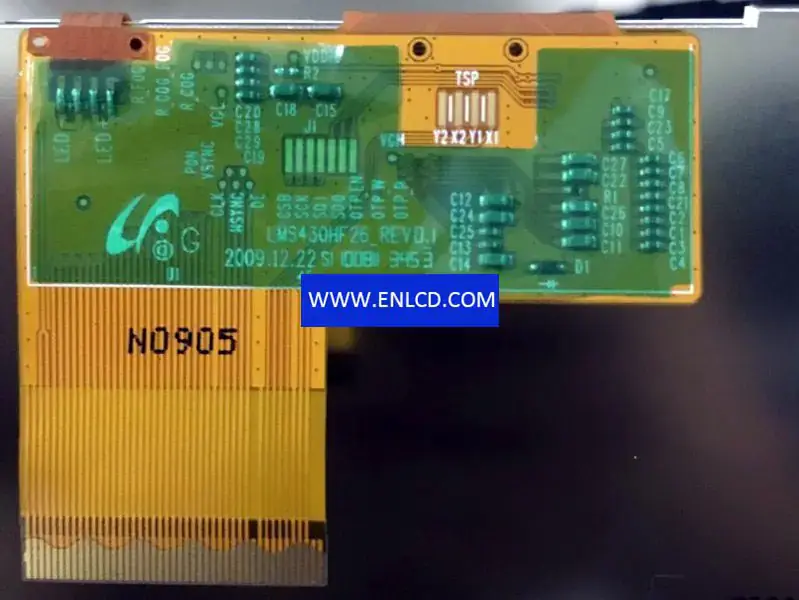

LMS430HF27 Samsung LCD panel replacement

Panel Brand：SAMSUNG
Panel Size：4.3 inch
Resolution：480×272(RGB) , WQVGA
Display Area：95.04(W)×53.856(H) mm
Outline Size：105.5(W)×67.2(H) mm
Brightness：500 cd/m2 (Typ.)
Viewing Angle：70/70/70/70 (Typ.)(CR≥10)
Best View on：Symmetry
Display Colors：16.7M
Frequency： 60Hz
Weight：45.0g (Typ.)
Panel Model：LMS430HF27 1 Compatible
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Horizontal Stripe
Bezel Opening：96.44(W)×55.23(H) mm
Surface：-
Contrast Ratio：800:1 (Typ.) (TM)
Display Mode： VA, Normally Black, Transflective
Response Time：17/15 (Typ.)(Tr/Td)
Lamp Type： 10S1P WLED, Without Driver
Touch Screen：Without
Application： Portable Navigation, Pocket TV, MP4 PMP,
Signal Interface： Parallel RGB (1 ch, 8-bit), 45 pins , FPC
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
