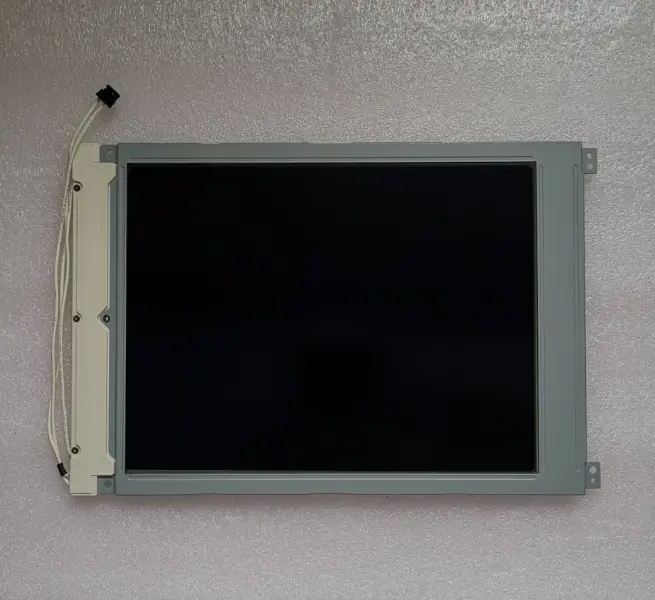

Sharp LM64183P LCD

Specification

Model P/N:LM64183P
Brand:Sharp
Diagonal Size:9.4"
Resolution:640×480, VGA 84PPI
Brightness:70 cd/m² (Typ.)
Contrast Ratio:11:1 (Typ.) (TM)
Viewing Angle:20/25/25/15 (Typ.)(CR>4)
Panel Type:FSTN-LCD, LCM
Pixel Format:Rectangle
Active Area:191.97(W)×143.97(H) mm
Bezel Opening:201.4(W)×153.4(H) mm
Response Time:350/200 (Typ.)(Tr+/Td)
Outline Size:260(W)×174(H) ×7(D) mm
Surface:-
Best View on:-
Display Colors:Monochrome
Lamp Type:1 pcs CCFL , 10K hours , Without Driver
Frequency:85Hz
Touch Screen:Without
Panel Weight:340g (Typ.)
Application:Industrial
Signal Interface:Parallel Data (1ch, 4-bit) , 15 pins Connector
Input Voltage:5.0V (Typ.)
