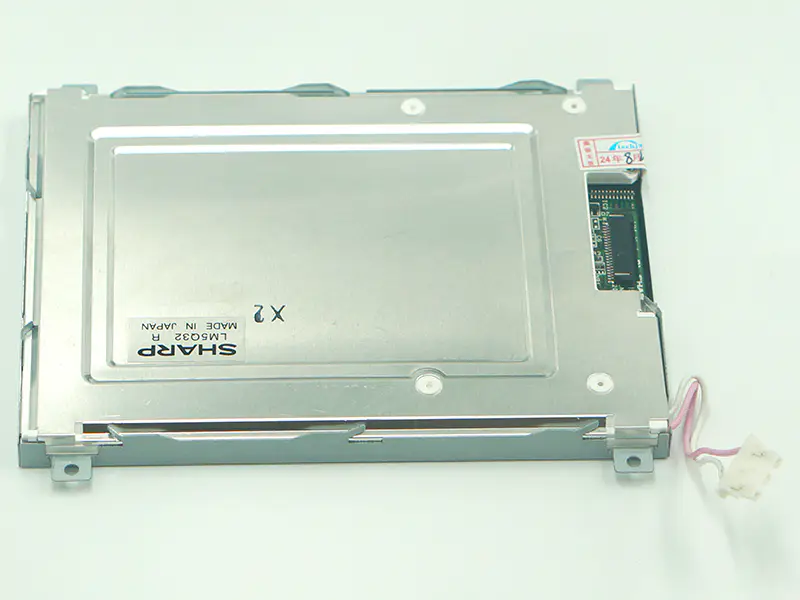

Sharp LM5Q32R LCD

Specification

Model P/N:LM5Q32R
Brand:Sharp
Diagonal Size:5.0"
Resolution:320(RGB)×240, QVGA 80PPI
Brightness:120 cd/m² (Typ.)
Contrast Ratio:30:1 (Typ.) (TM)
Viewing Angle:35/35/15/25 (Typ.)(CR≥5)
Panel Type:CSTN-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:100.8(W)×75.6(H) mm
Bezel Opening:103.4(W)×78.3(H) mm
Response Time:150/50 (Typ.)(Tr/Td)
Outline Size:134(W)×113(H) ×10.5(D) mm
Surface:-
Best View on:6 o'clock
Display Colors:Color
Lamp Type:1 pcs CCFL , 15K hours , Without Driver
Frequency:-
Touch Screen:Without
Panel Weight:150g (Typ.)
Application:Industrial
Signal Interface:Parallel Data (1ch, 8-bit) , 20 pins Connector
Input Voltage:5.0V (Typ.)
