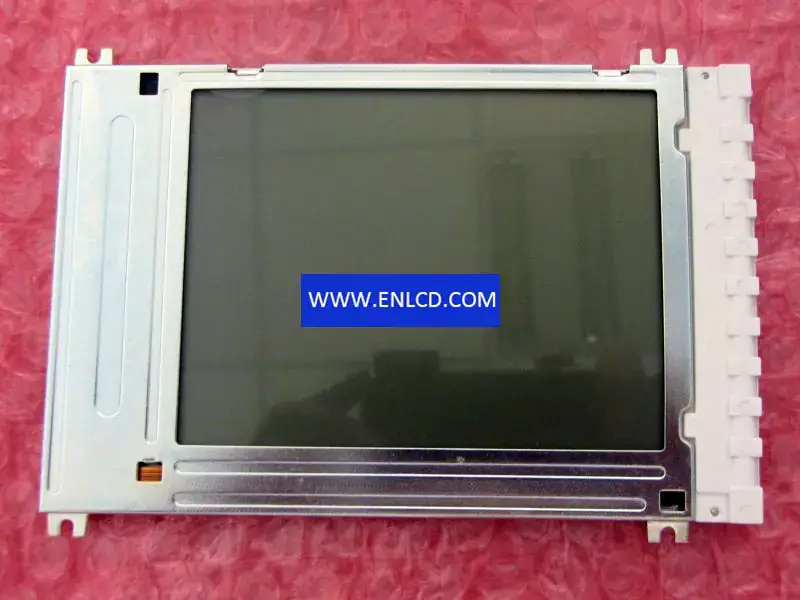

Sharp LM32K10 LCD

Specification

Model P/N:LM32K10
Brand:Sharp
Diagonal Size:4.7"
Resolution:320×240, QVGA 84PPI
Brightness:50 cd/m² (Typ.)
Contrast Ratio:10:1 (Typ.) (TM)
Viewing Angle:-
Panel Type:FSTN-LCD, LCM
Pixel Format:Rectangle
Active Area:95.97(W)×71.97(H) mm
Bezel Opening:100.0(W)×76.0(H) mm
Response Time:100/150 (Typ.)(Tr/Td)
Outline Size:148(W)×96(H) ×8(D) mm
Surface:-
Best View on:-
Display Colors:Monochrome
Lamp Type:1 pcs CCFL , Without Driver
Frequency:-
Touch Screen:Without
Panel Weight:140g (Typ.)
Application:Industrial
Signal Interface:Parallel Data (1ch, 4-bit) , 12 pins Connector
Input Voltage:5.0V (Typ.)
