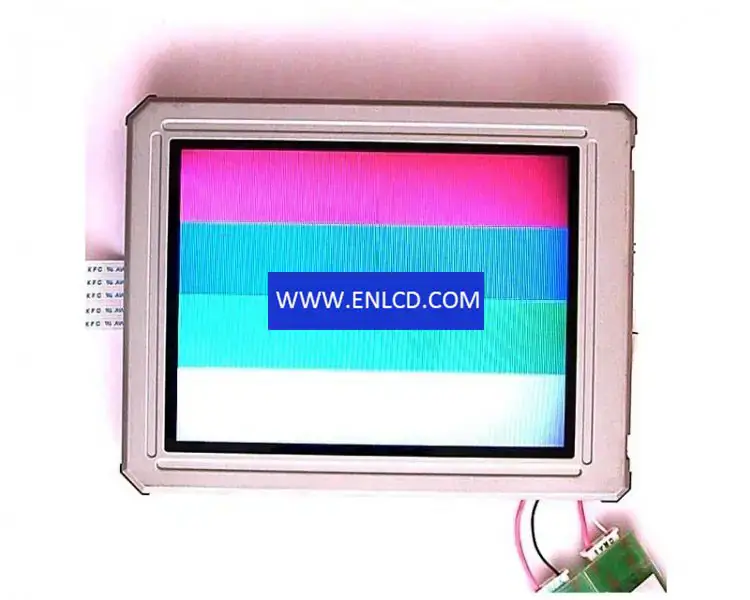

Sharp LM32C041 LCD

Specification

Model P/N:LM32C041
Brand:Sharp
Diagonal Size:5.5"
Resolution:320(RGB)×240, QVGA 72PPI
Viewing Angle:-
Panel Type:CSTN-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:111.36(W)×83.52(H) mm
Bezel Opening:115.6(W)×86.2(H) mm
Outline Dim:149.2(H)×116.4(V) mm
Treatment:-
View Direction:-
Response Time:-
Operating Mode:STN, Normally Black
Support Color:512
Light Source:CCFL [2 pcs] , W/O Driver
Weight:320g (Typ.)
Designed For:Industrial
Frame Rate:-
Touch Panel:Without
Interface Type:Parallel RGB (1 ch, 3-bit) , 20 pins Connector
