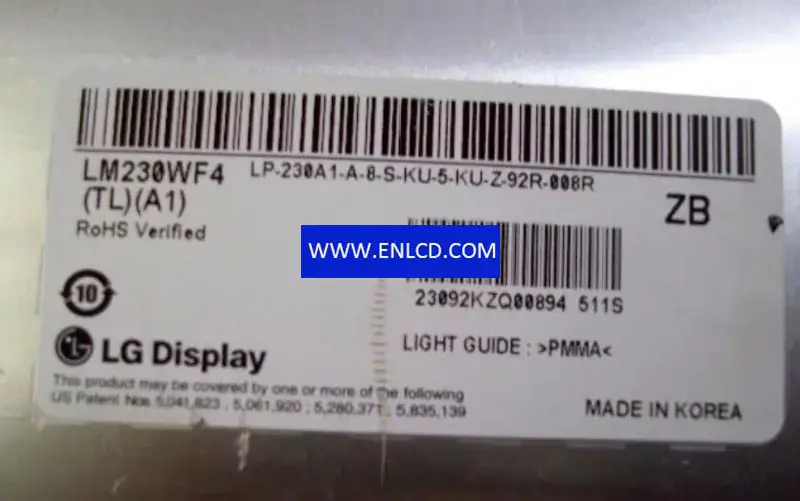

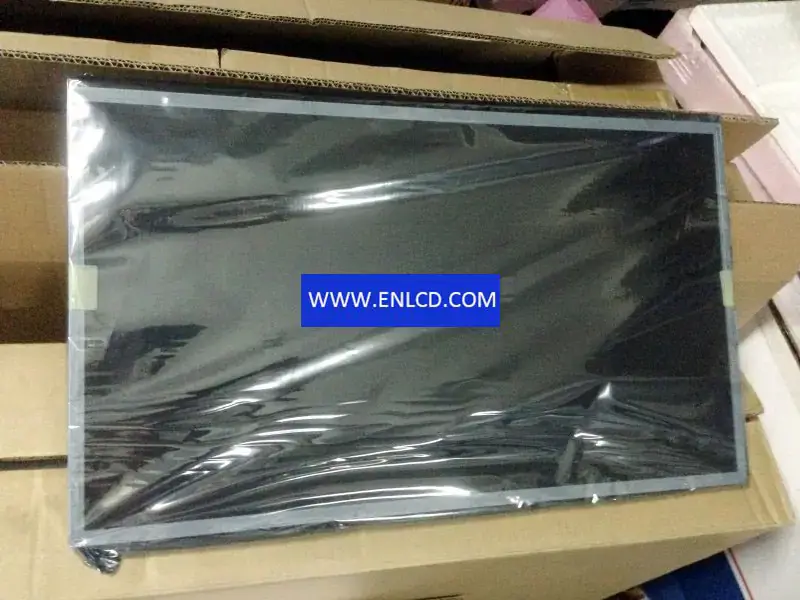

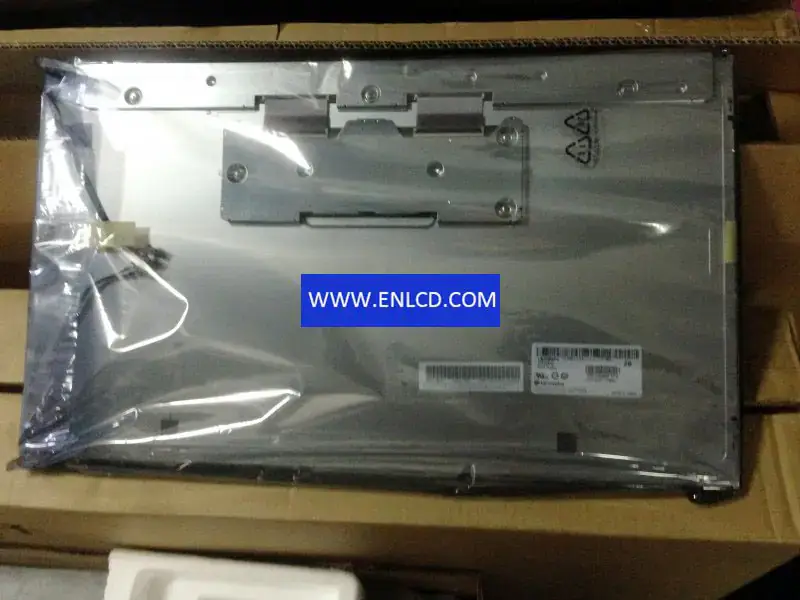

LM230WF4-TLA1 LG Display LCD panel replacement

Brand：LG Display
Diagonal Size：23.0 inch
Pixel Format：1920(RGB)×1080[FHD]
Active Area：509.184(H)×286.416(V) mm
Bezel Area：513.784(H)×291.016(V) mm
Luminance：400 cd/m2 (Typ.)
View Direction：6 o’clock
Viewing Angle：85/85/75/85 (Typ.)(CR≥10)
Support Color：16.7M 72% (CIE1931)
Weight：2.60/2.73Kgs (Typ./Max.)
Frame Rate： 120Hz
Model：LM230WF4-TLA1
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 533.2(H)×312(V)mm
Treatment：Antiglare, Hard coating (3H)
Contrast Ratio： 1000:1 (Typ.) (TM)
Response Time：1/4 (Typ.)(Tr/Td); 3 (Typ.)(G to G)
Operating Mode： TN, Normally White, Transmissive
Light Source： CCFL [4 pcs] , 50K hours , W/O Driver
Designed For： Desktop Monitor,
Touch Panel：Without
Interface Type： 92 pinsLVDS (4 ch, 8-bit), Connector
Power Supply： 12.0V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
