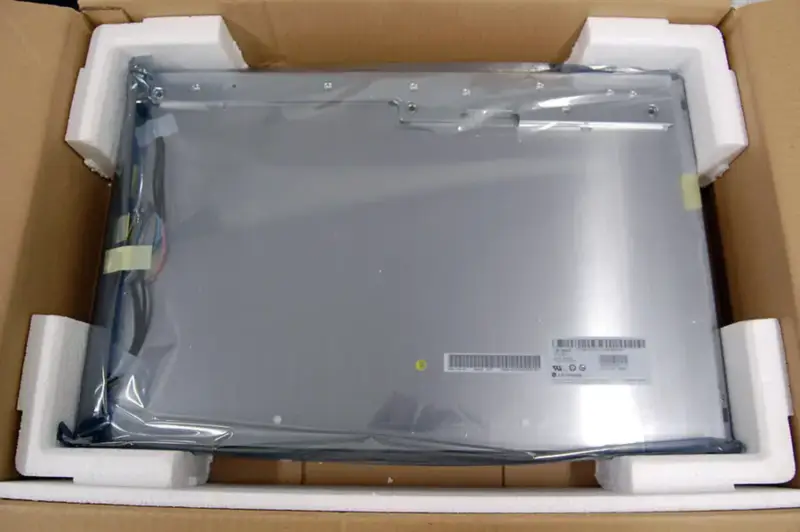

LG Display LM220WE1-TLE1 LCD

Specification

Model P/N:LM220WE1-TLE1
Brand:LG Display
Diagonal Size:22.0"
Resolution:1680(RGB)×1050, WSXGA+ 90PPI
Brightness:300 cd/m² (Typ.)
Contrast Ratio:1000:1 (Typ.) (TM)
Viewing Angle:85/85/75/85 (Typ.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:473.76(W)×296.1(H) mm
Bezel Opening:477.7(W)×300.1(H) mm
Response Time:1.3/3.7 (Typ.)(Tr/Td)
Outline Size:493.7(W)×320.1(H) ×17(D) mm
Surface:Antiglare, Hard coating (3H)
Best View on:6 o'clock
Display Colors:16.7M 72% NTSC
Lamp Type:4 pcs CCFL , 50K hours , Without Driver
Frequency:75Hz
Touch Screen:Without
Panel Weight:2.35/2.50Kgs (Typ./Max.)
Application:Desktop Monitor
Signal Interface:LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage:5.0V (Typ.)
