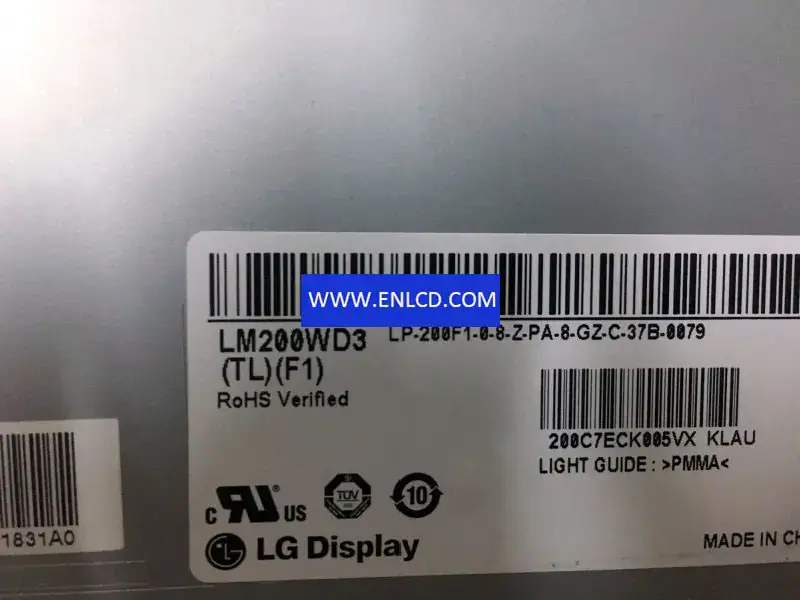

LM200WD3-TLF1 LG Display LCD panel replacement for Desktop Monitor

Brand：LG.Philips LCD
Model：LM200WD3-TLF1
Diagonal Size：20.0 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：1600(RGB)×900[HD+]
Configuration：RGB Vertical Stripe
Active Area：442.8(H)×249.075(V) mm
Outline Dim.：462.8(H)×272(V) mm
Bezel Area：446.8(H)×253.1(V) mm
Treatment：Antiglare， Hard coating (3H)
Luminance：250 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle：85/85/75/85 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：16.7M 72%(CIE1931)
Light Source：WLED[13S2P]， 30K hours， W/O Driver
Weight：1.49/1.50Kgs (Typ./Max.)
Designed For： Desktop Monitor,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (2 ch， 8-bit)， Connector
Power Supply：5.0V (Typ.)
Environment：Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
