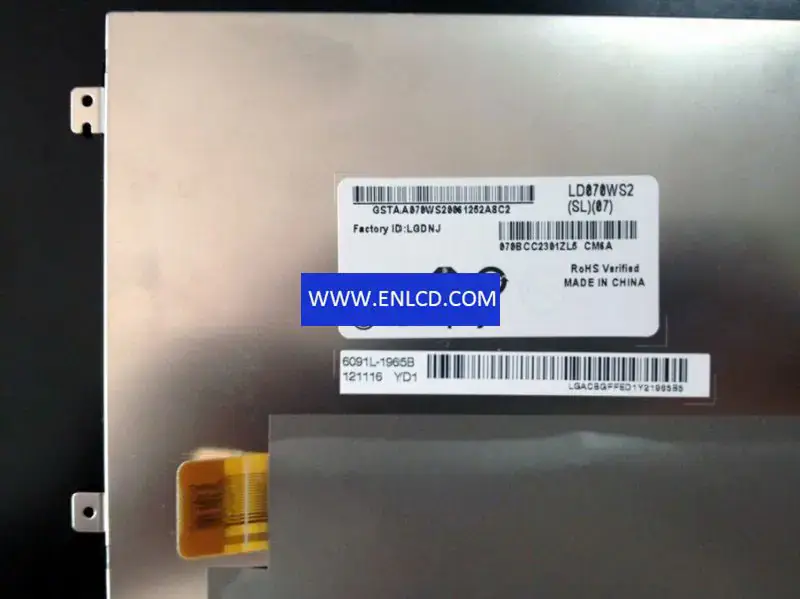

LG Display LD070WS2-SL07 LCD panel

Panel Brand：LG Display
Panel Model：LD070WS2-SL07
Panel Size：7.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×600 , WSVGA
Pixel Format：RGB Vertical Stripe
Display Area：153.6(W)×90(H) mm
Bezel Opening：-
Outline Size：162.8(W)×102.9(H)×3.97(D) mm
Surface：Hard coating (3H)
Brightness：400 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：IPS, Normally Black, Transmissive
Best View on：Symmetry
Response Time：50 (Max.)(Tr+Td)
Display Colors：16.7M
Lamp Type：5S4PWLED, Without Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 94.0/98.0g (Typ./Max.)
Application： MID UMPC, Pad & Tablet,
Signal Interface： LVDS (1 ch, 8-bit) + SPI, 30 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
