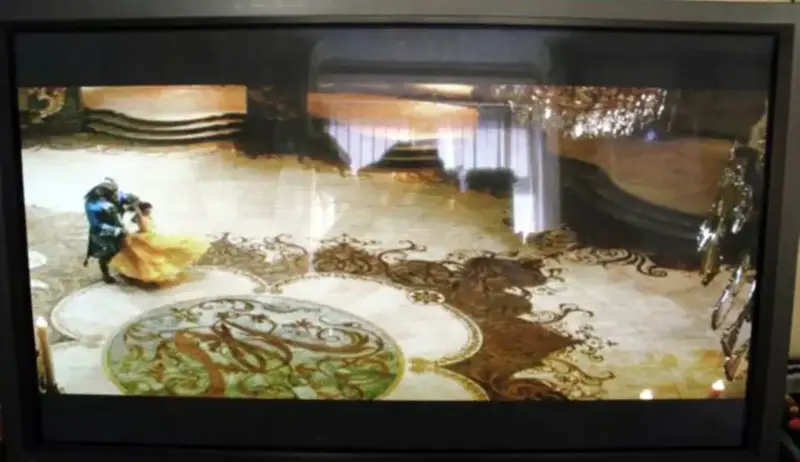

LC320WUD-SBA3 LG Display LCD panel replacement

Brand：LG Display
Model：LC320WUD-SBA3
Diagonal Size：31.5 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1920(RGB)×1080[FHD]
Configuration：RGB Vertical Stripe
Active Area：698.4(H)×392.85(V) mm
Outline Dim.：760(H)×450(V) mm
Bezel Area：703.8(H)×398.4(V) mm
Treatment：Antiglare (Haze 13%), Hard coating (3H)
Luminance：500 cd/m2 (Typ.)
Contrast Ratio：1300:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：6 (Typ.)(G to G)); 8 (Typ.)(MPRT)
Viewing Angle：89/89/89/89 (Min.)(CR≥10)
Operating Mode：S-IPS, Normally Black, Transmissive
Support Color：16.7M/1.06B 72%(CIE1931)
Light Source：EEFL, 50K hours, With Inverter
Weight： 6.00/6.60Kgs (Typ./Max.)
Designed For： TV Sets,
Frame Rate：120Hz+120Hz
Touch Panel：Without
Interface Type： 92 pinsLVDS (4 ch, 8/10-bit), Connector
Power Supply：12.0V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
