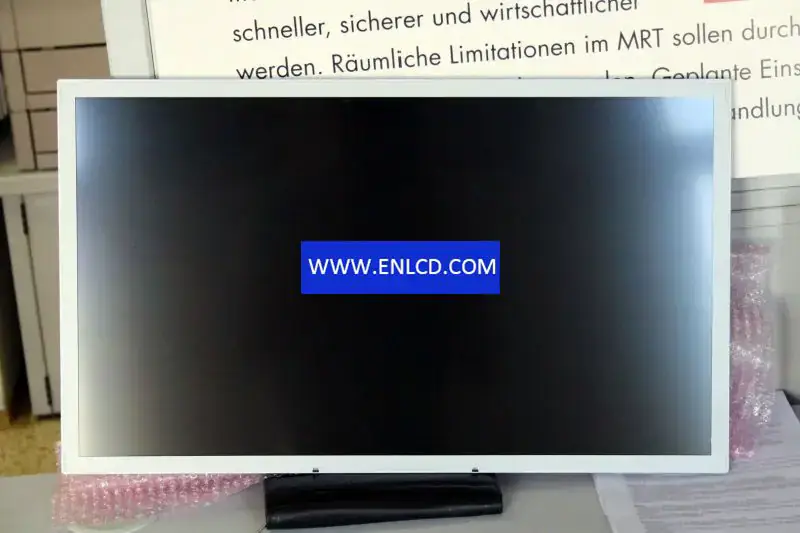

LG Display LC260EUN-SCA1 LCD

Specification

Model P/N:LC260EUN-SCA1
Brand:LG Display
Diagonal Size:26.0"
Resolution:1920(RGB)×1080, FHD 84PPI
Contrast Ratio:1000:1 (Typ.) (TM)
Viewing Angle:89/89/89/89 (Min.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:576(W)×324(H) mm
Bezel Opening:580.2(W)×328.2(H) mm
Outline Dim:613(H)×361(V) ×15.9(D) mm
Treatment:Antiglare (Haze 10%), Hard coating (3H)
Luminance:400 cd/m² (Typ.)
View Direction:Symmetry
Response Time:8 (Typ.)(G to G)
Operating Mode:S-IPS, Normally Black, Transmissive
Support Color:16.7M 68% NTSC
Light Source:WLED , 50K hours , With LED Driver
Weight:2.75/2.90Kgs (Typ./Max.)
Designed For:TV Sets
Frame Rate:60Hz
Touch Panel:Without
Interface Type:LVDS (2 ch, 8-bit) , 51 pins Connector
Power Supply:12.0V (Typ.)
