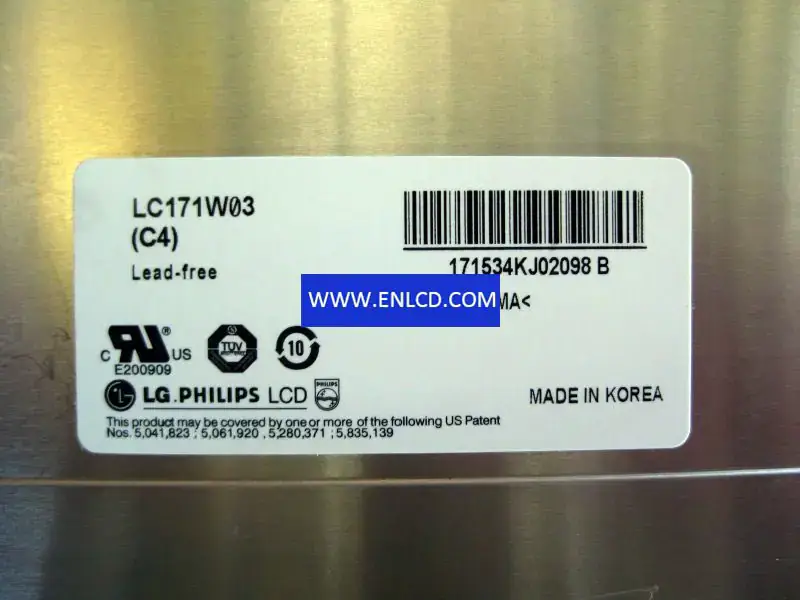

LG Display LC171W03-C4 LCD panel

Brand：LG.Philips LCD
Model：LC171W03-C41 Compatible
Diagonal Size：17.1 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1280(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：372.48(H)×223.488(V) mm
Outline Dim.：400(H)×258(V)×22.7(D) mm
Bezel Area：376.6(H)×227.6(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：450 cd/m2 (Typ.)
Contrast Ratio：600:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：12/13 (Typ.)(Tr/Td)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Operating Mode：S-IPS, Normally Black, Transmissive
Support Color：16.7M
Light Source：CCFL[6 pcs], 50K hours, W/O Driver
Weight：2.50Kgs (Typ.)
Designed For： TV Sets,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 20 pinsLVDS (1 ch, 8-bit), Connector
Power Supply：12.0V (Typ.)
Environment：Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
