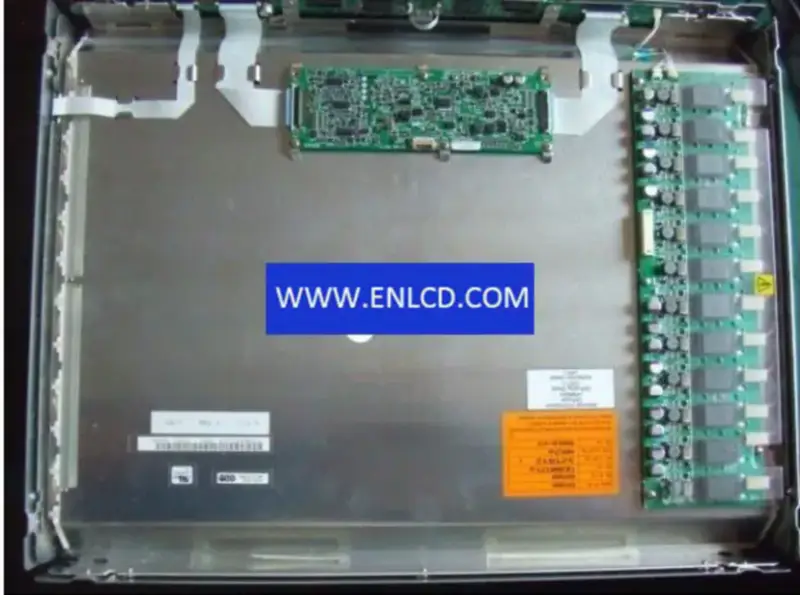

ITQX21K IDTech LCD panel replacement

Manufacturer：IDTech
Model Name：ITQX21K
Screen Size：20.8 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：2048(LCR)×1536 (QXGA)
Arrangement：LCR Vertical Stripe
Active Area(mm)： 423.9 × 318 (H×V)
Outline(mm)：457 × 350 (H×V×D)
Luminance：800 cd/m2 (Typ.)
Contrast Ratio：600 : 1 (Typ.) (TM)
Viewing Angle： 85/85/85/85 (Typ.)(CR≥10)
Response： –
Good View at： Symmetry
Work Mode： DD-IPS, Normally Black, Transmissive
Color Depth：Grayscale
Backlight：CCFL
Mass： 2.30Kgs (Typ.)
Used for： Medical Imaging,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：LVDS (4 ch, 8-bit), Connector, 70 pins
Voltage Supply：12.0V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
