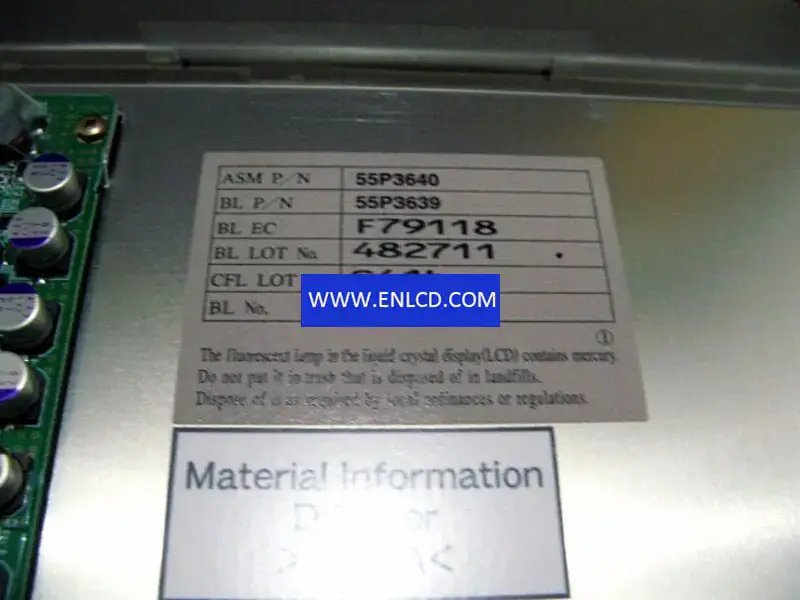

ITQX20H IDTech LCD panel replacement

Panel Brand：IDTech
Panel Model：ITQX20H
Panel Size：20.8 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：2048(RGB)×1536 , QXGA
Pixel Format：RGB Vertical Stripe
Display Area：423.9(W)×318(H) mm
Bezel Opening：427.9(W)×322.0(H) mm
Outline Size：457(W)×350(H) mm
Surface：-
Brightness：235 cd/m2 (Typ.)
Contrast Ratio：300:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：DD-IPS, Normally Black, Transmissive
Best View on：Symmetry
Response Time：25/25 (Typ.)(Tr/Td)
Display Colors：16.7M
Lamp Type：CCFL, With Inverter
Frequency：60Hz
Touch Screen：Without
Panel Weight： 2.30Kgs (Typ.)
Application： Desktop Monitor, Medical Imaging,
Signal Interface： LVDS (4 ch, 8-bit), 70 pins, Connector
Input Voltage：12.0V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
