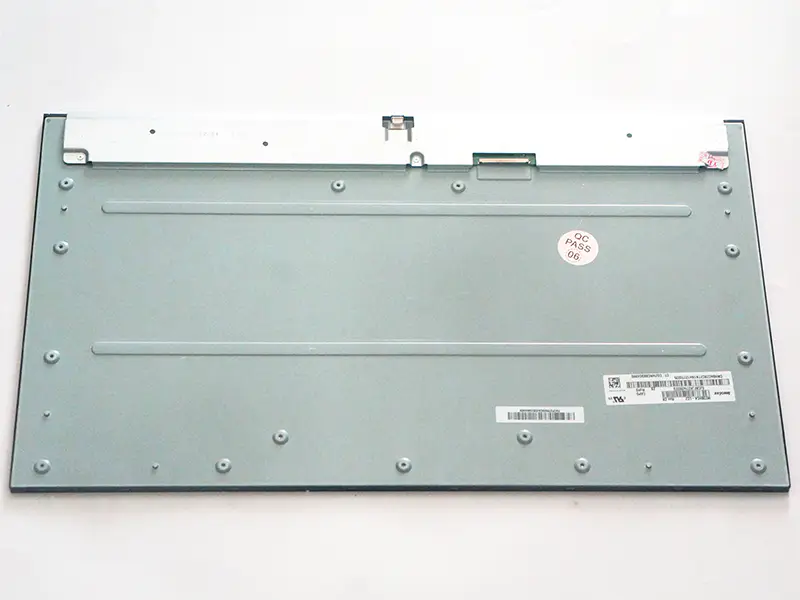

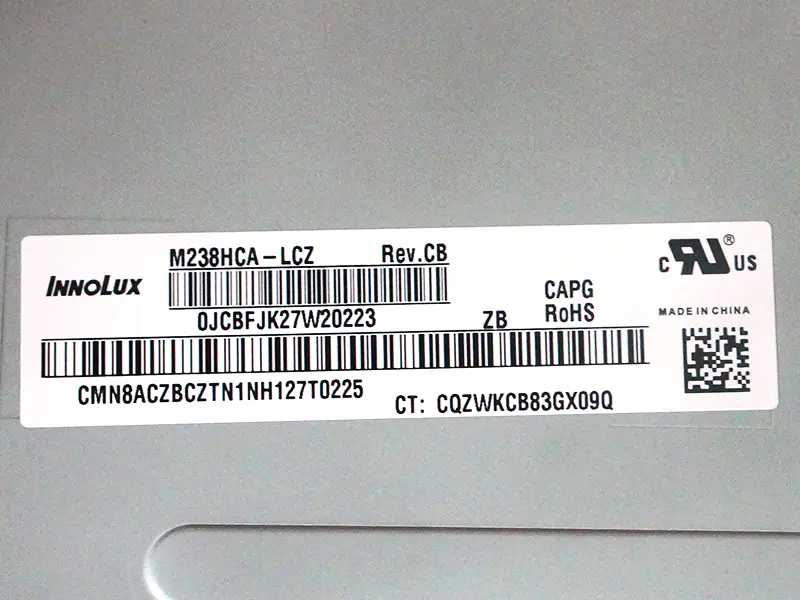

Innolux M238HCA-LCZ LCD Panel

Innolux M238HCA-LCZ LCD Panel

Innolux M238HCA-LCZ LCD Panel

Innolux M238HCA-LCZ LCD Panel

Innolux M238HCA-LCZ LCD Panel

Innolux M238HCA-LCZ LCD Panel

{{ product.price_format }}

{{ product.origin_price_format }}

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Condition:

Quantity:

Product Details

Specifications

Panel Type: a-Si TFT-LCD, LCM

Resolution: 1920(RGB)×1080, FHD 92PPI
Pixel Format: RGB Vertical Stripe

Active Area: 527.04(W)×296.46(H) mm
Bezel Opening: –

Outline Dim.

535(W)×313(H)×12.85(D) mm
Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

250 cd/m² (Typ.)
Contrast Ratio

1000:1 (Typ.) (TM)

View Direction

Symmetry
Response Time

14 (Typ.)(G to G)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)
Operating Mode

AAS, Normally Black, Transmissive

Support Color

16.7M 99% sRGB
Light Source

WLED [4 strings] , 30K hours , W/O Driver

Weight

2.23/2.34Kgs (Typ./Max.)

Frame Rate

75Hz
Touch Panel

Without

Interface Type
LVDS (2 ch, 8-bit) , 30 pins Connector

Power Supply
5.0V (Typ.)

Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
