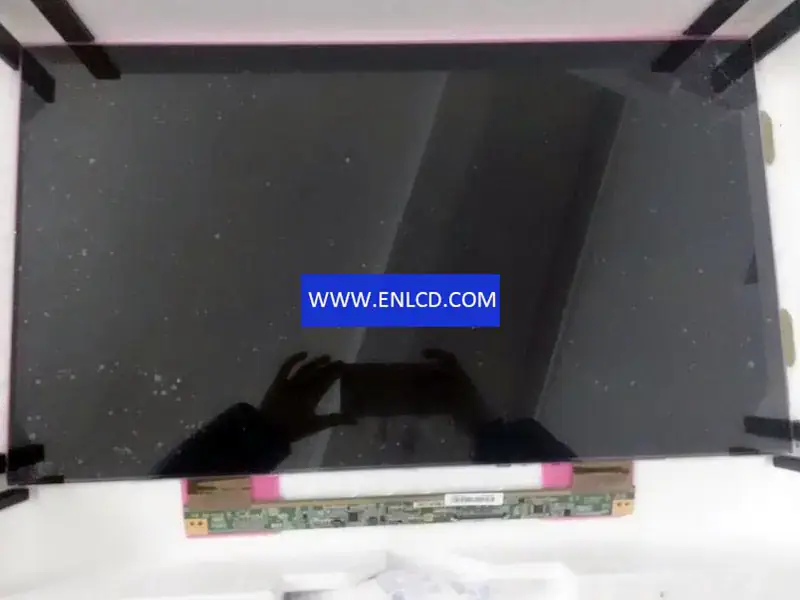

BOE HV236WHB-N00 LCD

Specification

Model P/N:HV236WHB-N00
Brand:BOE
Diagonal Size:23.6"
Resolution:1366(RGB)×768, WXGA 66PPI
Contrast Ratio:1000 : 1 (Typ.) (TM)
Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
Color Depth:16.7M 64% NTSC
Backlight:No B/L
Signal Type:LVDS (1 ch, 8-bit) , 30 pins Connector
Panel Type:a-Si TFT-LCD, CELL , FOB
Pixel Format:RGB Vertical Stripe
Active Area:521.471(W)×293.184(H) mm
Bezel Opening:-
Treatment:Antiglare (Haze 1%), Hard coating (3H)
Luminance:0 cd/m²
Outline(mm):535.47 × 306.404 × 1.32 (H×V×D)
Response:14 (Typ.)(G to G) ms
Good View at:Symmetry
Work Mode:ADS, Normally Black, Transmissive
Mass:471g (Typ.)
Used for:TV Sets
Refresh Rate:60Hz
Touchscreen:Without
Voltage Supply:12.0V (Typ.)
Max Ratings:Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Driver IC list:Built-in COF 2 source + 2 gate chips
Transmissivity:5.8% (Typ.)(with Polarizer)
Glass Thickness:0.50+0.50 mm
