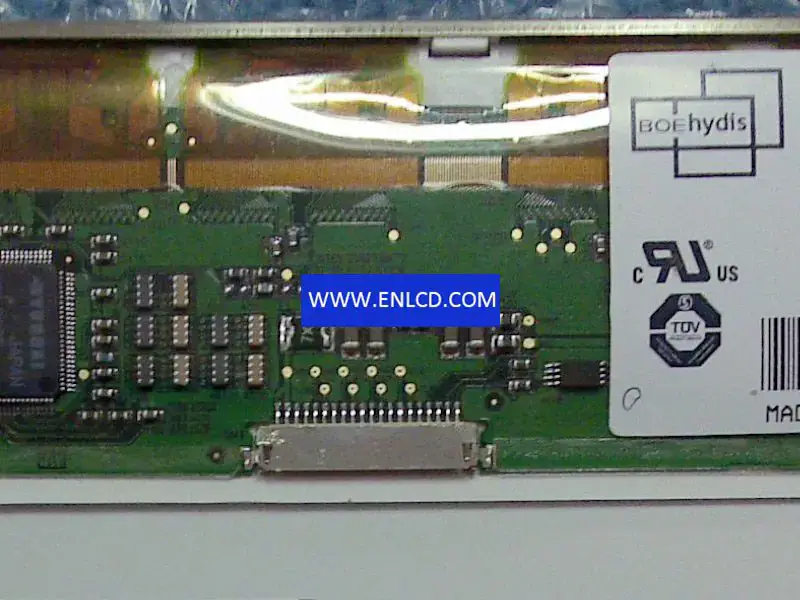

HT12X21-220 HYDIS LCD panel replacement

Manufacturer：BOE HYDIS
Model Name：HT12X21-2202 Compatible
Screen Size：12.1 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：1024(RGB)×768 (XGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 245.76 × 184.32 (H×V)
Outline(mm)：270 × 199× 7.2 (H×V×D)
Bezel Area(mm)： 250.4 × 189.0 (H×V)
Treatment： Antiglare (Haze 25%), Hard coating (3H)
Luminance：180 cd/m2 (Typ.)
Contrast Ratio：450 : 1 (Typ.) (TM)
Viewing Angle： 80/80/80/80 (Typ.)(CR≥10)
Response： 40 (Typ.)(Tr+Td) ms
Good View at： Symmetry
Work Mode： AFFS, Normally Black, Transmissive
Color Depth：262K 40%(CIE1931)
Backlight：1 pcsCCFL, 10K hours, No Driver
Mass： 305g (Typ.)
Used for： Pad & Tablet,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：LVDS (1 ch, 6-bit), Connector, 20 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
