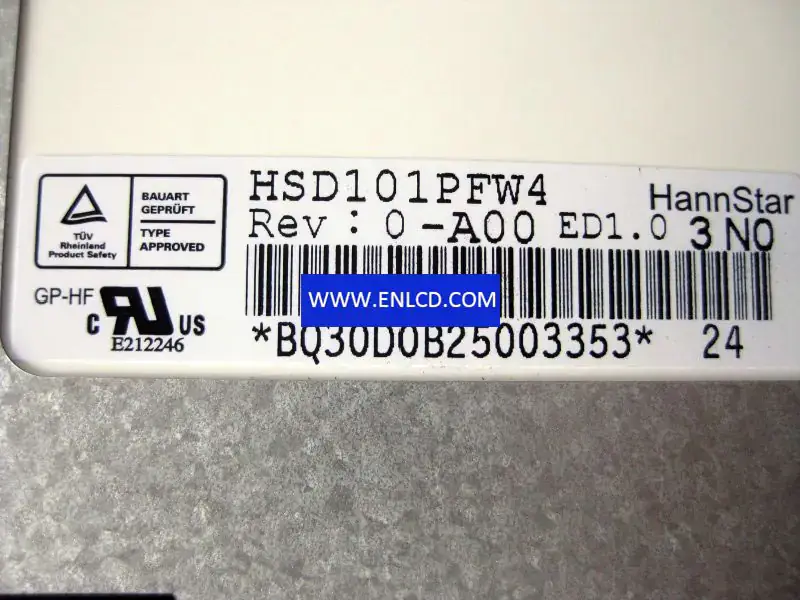

HSD101PFW4-A00 HannStar LCD panel replacement

Manufacturer：HannStar
Model Name：HSD101PFW4-A002 Compatible
Screen Size：10.1 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1024(RGB)×600 (WSVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 222.72 × 125.28 (H×V)
Outline(mm)：245 × 146.5× 3.4 (H×V×D)
Bezel Area(mm)： 225.72 × 128.28 (H×V)
Treatment： Antiglare, Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle： 45/45/15/35 (Typ.)(CR≥10)
Response： 4/12 (Typ.)(Tr/Td) ms
Good View at： 6 o’clock
Work Mode： TN, Normally White, Transmissive
Color Depth：262K 45%(CIE1931)
Backlight：WLED, 10K hours, With LED Driver
Outline Shape： –
Used for： Digital Photo Frame, Portable DVD Player, Netbook PC,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (1 ch, 6-bit), Connector , 40 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
