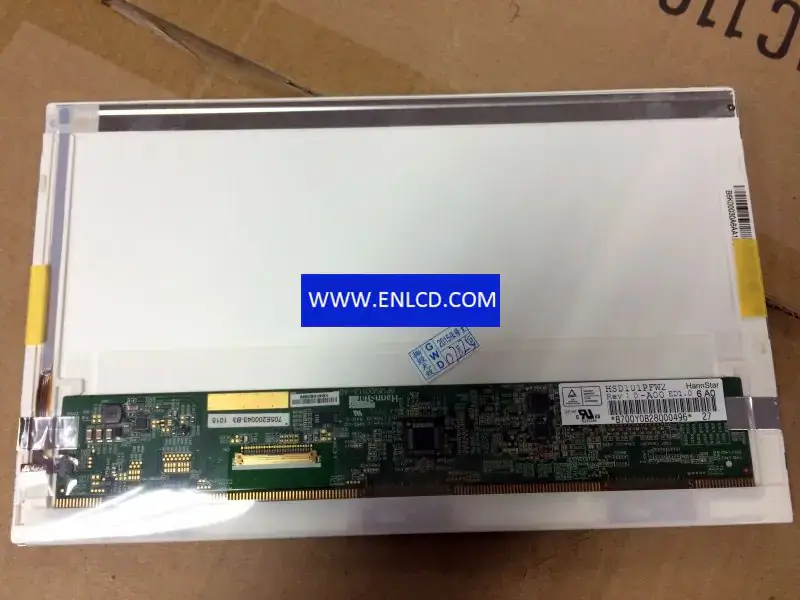

HannStar HSD101PFW2-A00 LCD panel

Brand：HannStar
Model：HSD101PFW2-A0013 Compatible
Diagonal Size：10.1 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：1024(RGB)×600[WSVGA]
Configuration：RGB Vertical Stripe
Active Area：222.72(H)×125.28(V) mm
Outline Dim.：235(H)×143(V)×5.2(D) mm
Bezel Area：225.72(H)×128.26(V) mm
Treatment：Glare (Haze 0%)， Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：4/12 (Typ.)(Tr/Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：262K
Light Source：WLED[24 pcs]， 10K hours， With LED Driver
Form Style： –
Designed For： Digital Photo Frame, Portable DVD Player, Netbook PC,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (1 ch， 6-bit)， Connector
Power Supply：3.2V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
