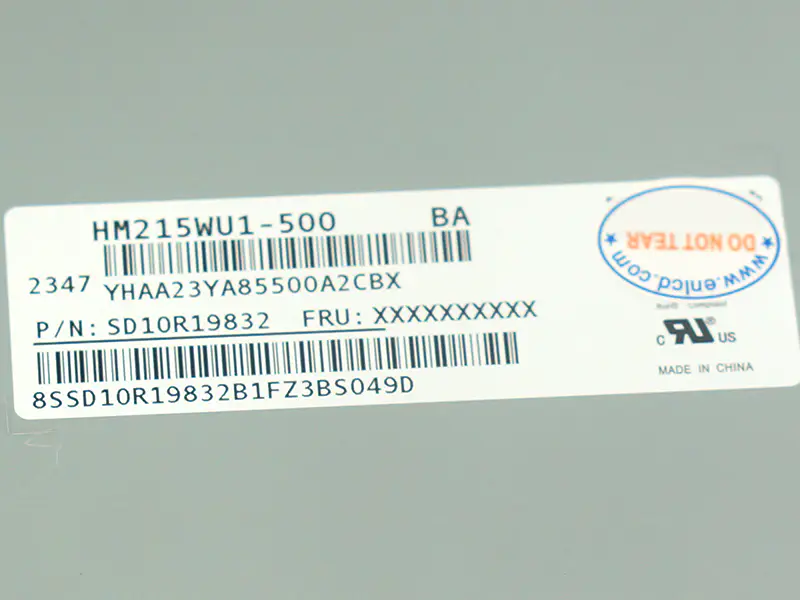

HM215WU1-500 BOE LCD panel replacement

Panel Brand：BOE
Panel Model：HM215WU1-500
Panel Size：21.5 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1920(RGB)×1080 , FHD
Pixel Format：RGB Vertical Stripe
Display Area：476.64(W)×268.11(H) mm
Bezel Opening：479.8(W)×271.3(H) mm
Outline Size：495.6(W)×292.2(H)×10.7(D) mm
Surface：Antiglare (Haze 25%), Hard coating (3H)
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：600:1 (Typ.) (TM)
Viewing Angle：45/45/25/40 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：1.5/3.5 (Typ.)(Tr/Td)
Display Colors：16.7M
Lamp Type：16S4PWLED, 30K hours, Without Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 1.45Kgs (Typ.)
Application： Desktop Monitor,
Signal Interface： LVDS (2 ch, 8-bit), 30 pins , Connector
Input Voltage：5.0V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
