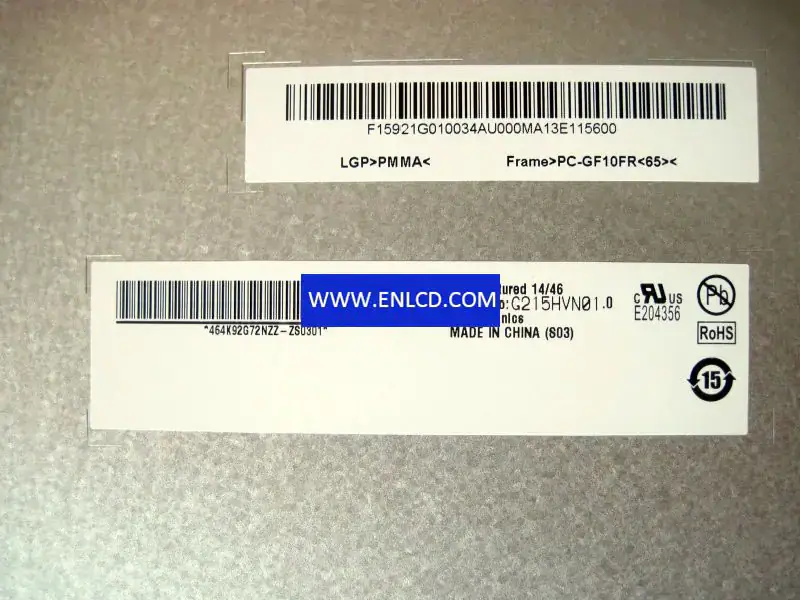

G215HVN01.0 S03 AUO LCD panel replacement for Industrial Application

Manufacturer：AUO
Model Name：G215HVN01.0 S03
Screen Size：21.5 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1920(RGB)×1080 (FHD)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 476.64 × 268.11 (H×V)
Outline(mm)：495.6 × 292.2× 13.2 (H×V×D)
Bezel Area(mm)： 479.84 × 271.31 (H×V)
Treatment： Antiglare, Hard coating (3H)
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：5000 : 1 (Typ.) (TM)
Viewing Angle： 89/89/89/89 (Typ.)(CR≥10)
Response： 20/5 (Typ.)(Tr/Td) ms
Good View at： Symmetry
Work Mode： AMVA3, Normally Black, Transmissive
Color Depth：16.7M 75%(CIE1931)
Backlight：13S5PWLED, 50K hours, With LED Driver
Mass： 2.30Kgs (Max.)
Used for： Industrial Application,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (2 ch, 8-bit), Connector , 30 pins
Voltage Supply：5.0V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 60 °C
