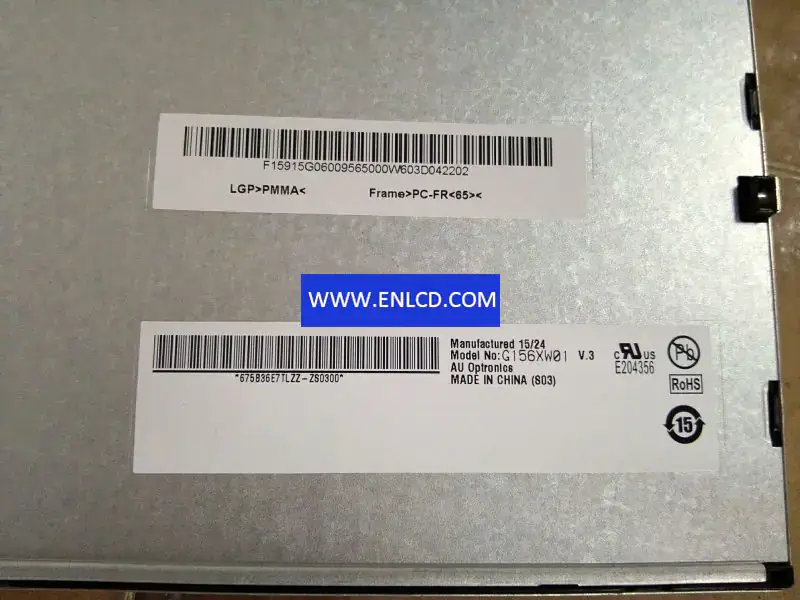

G156XW01 V3 AUO LCD panel replacement for Industrial Application

Brand：AUO
Model：G156XW01 V3
Diagonal Size：15.6 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：344.232(H)×193.536(V) mm
Outline Dim.：363.8(H)×215.9(V)×9.8(D) mm
Bezel Area：347.54(H)×196.83(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：-
Response Time：6/2 (Typ.)(Tr/Td)
Viewing Angle：85/85/80/80 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：16.2M 67%(CIE1931)
Light Source：WLED, 50K hours, With LED Driver
Weight：0.94/1.04Kgs (Typ./Max.)
Designed For： Industrial Application,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (1 ch, 8-bit), Connector
Power Supply：5.0V (Typ.)
Environment：Operating Temperature: 0 ~ 60 °C; Storage Temperature: -20 ~ 60 °C
