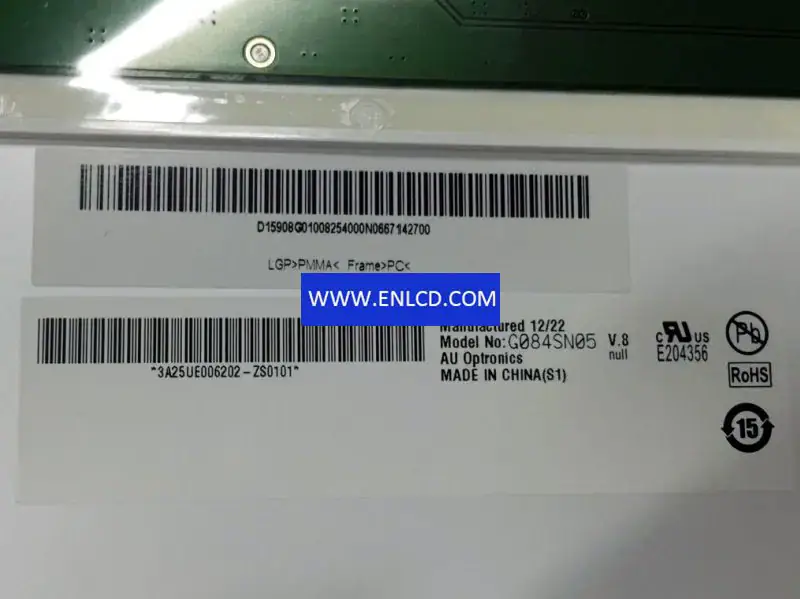

G084SN05 V8 AUO LCD panel replacement for Industrial Application

Brand：AUO
Model：G084SN05 V8
Diagonal Size：8.4 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：800(RGB)×600[SVGA]
Configuration：RGB Vertical Stripe
Active Area：170.4(H)×127.8(V) mm
Outline Dim.：203(H)×142.5(V)×8.3(D) mm
Bezel Area：174.15(H)×131.2(V) mm
Treatment：Antiglare, Hard coating (3H)
Luminance：450 cd/m2 (Typ.)
Contrast Ratio：600:1 (Typ.) (TM)
View Direction：12 o'clock
Response Time：20/10 (Typ.)(Tr/Td)
Viewing Angle：80/80/80/60 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K/16.2M 45%(CIE1931)
Light Source：WLED[2 strings], 50K hours, With LED Driver
Weight：250±10g
Designed For： Industrial Application,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 20 pinsLVDS (1 ch, 6/8-bit), Connector
Power Supply：3.3V (Typ.)
Environment：Operating Temperature: -30 ~ 85 °C; Storage Temperature: -30 ~ 85 °C
