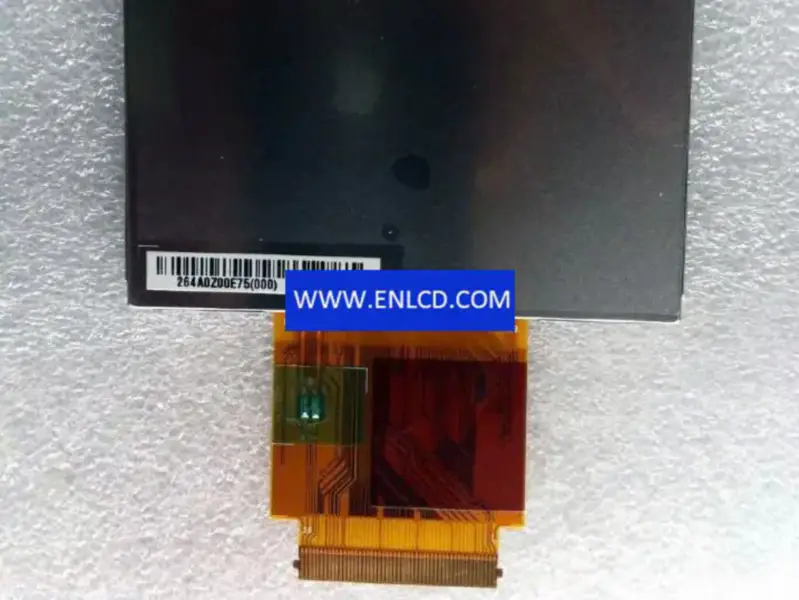

G050VVN01.0 AUO LCD panel replacement

Brand：AUO
Model：G050VVN01.0
Diagonal Size：5.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：480(RGB)×800[WVGA]
Configuration： RGB Vertical Stripe
Active Area：64.8(H)×108(V) mm
Outline Dim.：71.2(H)×119.5(V)×2.7(D) mm
Bezel Area：-
Treatment：Antiglare, Hard coating (3H)
Luminance：450 cd/m2 (Typ.)
Contrast Ratio： 700:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：20/15 (Typ.)(Tr/Td)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Operating Mode：MVA, Normally Black, Transmissive
Support Color：16.7M 50%(CIE1931)
Light Source：WLED[6S2P], 10K hours, W/O Driver
Weight： 48.0±5.0g
Designed For： Handheld & PDA, Industrial Application,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 50 pinsParallel RGB (1 ch, 8-bit) + SPI, FPC
Power Supply：3.0/3.0 (Typ.)(VCI/VDDI)
Environment： Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C
