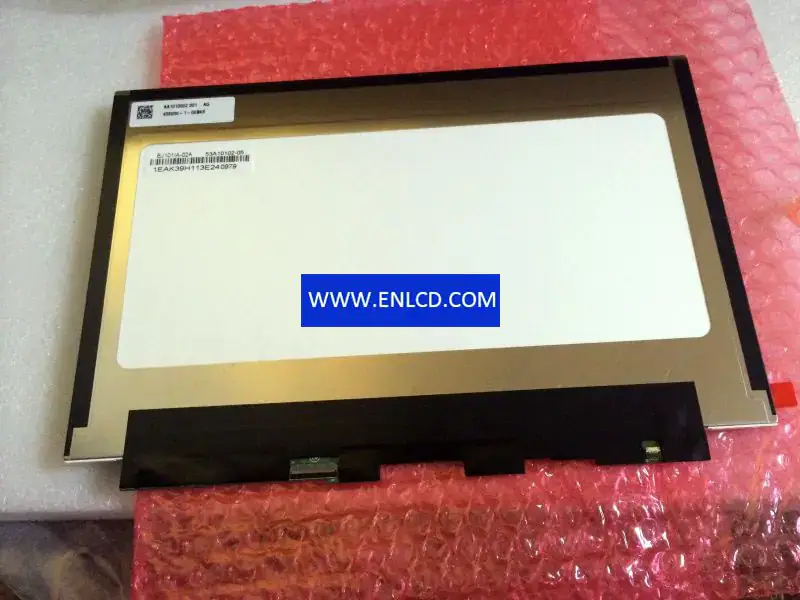

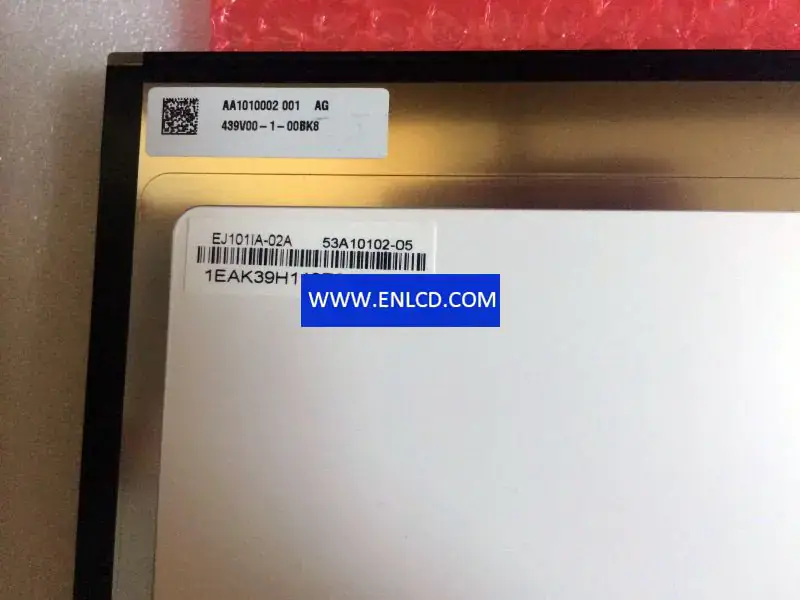

EJ101IA-02A Innolux LCD panel replacement for Pad & Tablet

Panel Brand：Chimei Innolux
Panel Model：EJ101IA-02A
Panel Size：10.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1280(RGB)×800 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：216.96(W)×135.6(H) mm
Bezel Opening：-
Outline Size：226.33(W)×157.3(H)×3.14(D) mm
Surface：-
Brightness：400 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Display Mode：IPS, Normally Black, Transmissive
Best View on：Symmetry
Response Time：25 (Typ.)(Tr+Td)
Display Colors：16.2M 50%(CIE1931)
Lamp Type：6S6PWLED, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 135±10g
Application： Pad & Tablet,
Signal Interface： LVDS (1 ch, 8-bit), 45 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -10 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
