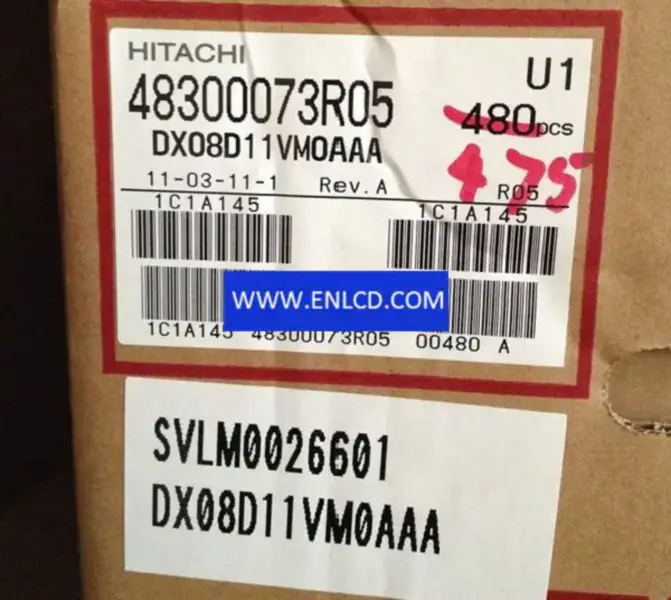

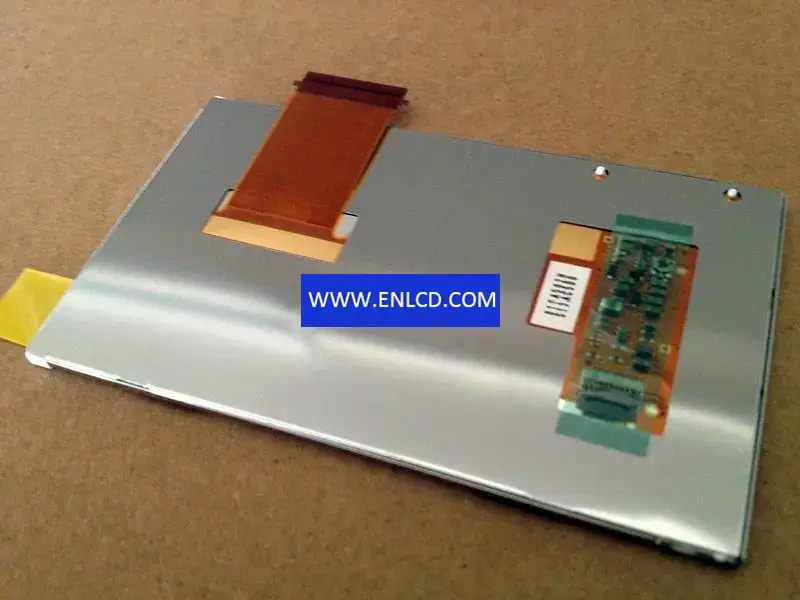

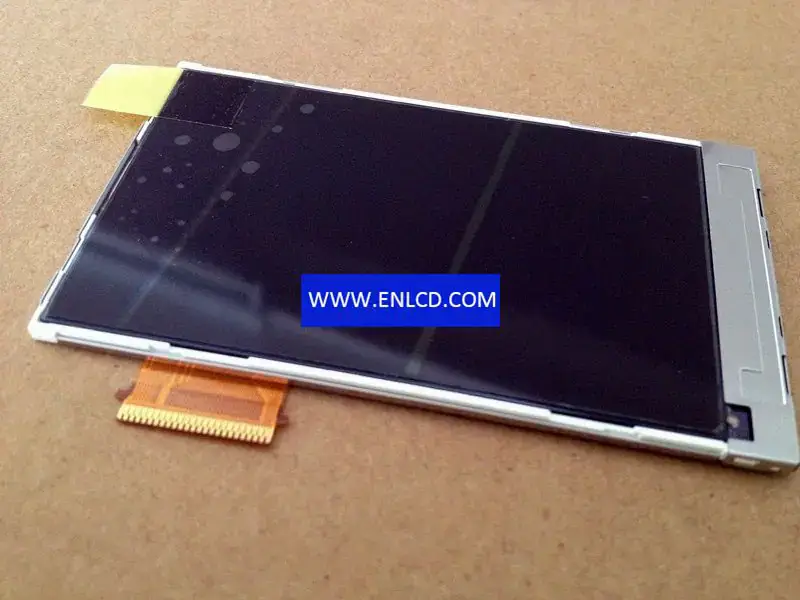

DX08D11VM0AAA KOE LCD panel replacement

Manufacturer：HITACHI
Screen Size： 3.0 inch
Pixel Number： 480(RGB)×800(WVGA)
Active Area(mm)：38.88 × 64.8 (H×V)
Luminance：400 (Typ.)(cd/m2)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Good View at：Symmetry
Color Depth：262K/16.7M 71% (CIE1931)
Mass： 14.5g (Typ.)
Refresh Rate：60Hz
Model Name：DX08D11VM0AAA
Screen Type：LCM ,LTPS TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 45.6 × 76.4(H×V×D)
Contrast Ratio： 400 : 1 (Typ.) (TM)
Work Mode： IPS, Normally Black, Transmissive
Response：35 (Typ.)(Tr+Td) ms
Backlight：1S6P WLED, No Driver
Used for： Mobile Phone,
Touchscreen：Without
Signal Type：Parallel RGB (1 ch, 6/8-bit) + SPI, FPC, 49 pins
Voltage Supply： 1.8/2.8/2.8V (Typ.)(IOVCC/VCC/VCI)
Max. Ratings： Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
