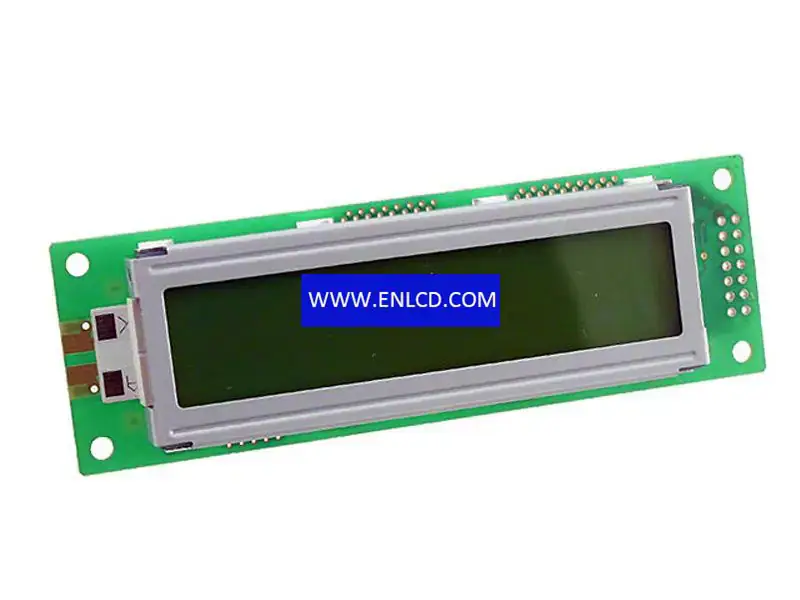

DMC-20261NYJ-LY-CKE-CNN Kyocera LCD panel replacement for Industrial Application

Brand：Kyocera
Model：DMC-20261NYJ-LY-CKE-CNN1 Compatible
Diagonal Size：3.0 inch
Type：STN-LCD, LCM
Char Format：20 characters × 2 lines
Char Format： 5×8 dots
Font Size：3.2×5.55 mm
Font Pitch：3.8×5.95 mm
Active Area：75.4(H)×11.5(V) mm
Outline Dim.：116(H)×37(V)×15.7(D) mm
Bezel Area：83.0(H)×18.6(V) mm
Treatment：-
Luminance：-
Contrast Ratio： 5:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：60/90 (Typ.)(Tr/Td)
Viewing Angle：50/50/40/50 (Typ.)(CR≥2)
Operating Mode：STN, Yellow/Green (Positive), Transmissive
Support Color：Monochrome
Light Source：YG-LED[2S13P], W/O Driver
Weight： 90.0g (Max.)
Designed For： Industrial Application,
Frame Rate：-
Touch Panel：Without
Interface Type： 14 pins8-bit parallel, Pad
Power Supply：5.0V (Typ.)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C
