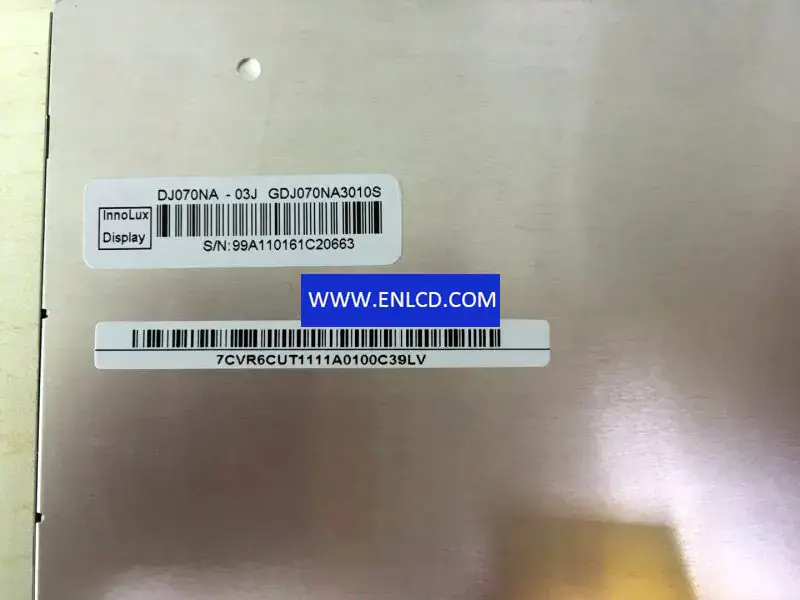

DJ070NA-03J Innolux LCD panel replacement for Automotive Display

Panel Brand：Innolux
Panel Size：7.0 inch
Resolution：800(RGB)×480 , WVGA
Display Area：154.08(W)×85.92(H) mm
Outline Size：164.9(W)×100(H)×6(D) mm
Brightness：750 cd/m2 (Typ.)
Viewing Angle：70/70/60/70 (Typ.)(CR≥10)
Best View on：-
Display Colors：262K/16.7M50%(CIE1931)
Frequency： 60Hz
Weight：130g (Typ.)
Panel Model：DJ070NA-03J
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：157.08(W)×89.92(H) mm
Surface：Antiglare
Contrast Ratio：500:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：25 (Typ.)(Tr+Td)
Lamp Type：WLED , 20K hours , Without Driver
Touch Screen：Without
Application： Automotive Display,
Signal Interface： Parallel RGB (1 ch, 6/8-bit), 50 pins , FPC
Input Voltage： 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment： Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 90 °C
