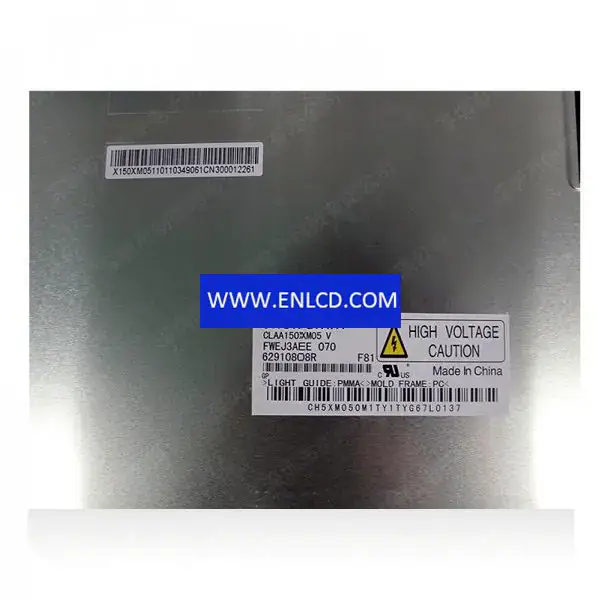

CLAA150XM05 CPT LCD panel replacement for Desktop Monitor

Brand：CPT
Model：CLAA150XM05
Diagonal Size：15.0 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：1024(RGB)×768[XGA]
Configuration： RGB Vertical Stripe
Active Area：304.128(H)×228.096(V) mm
Outline Dim.：326.5(H)×253.5(V) mm
Bezel Area：307.4(H)×231.3(V) mm
Treatment：Antiglare
Luminance：450 cd/m2 (Typ.)
Contrast Ratio： 700:1 (Typ.) (TM)
View Direction：-
Response Time：2/6 (Typ.)(Tr/Td)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Operating Mode：TN， Normally White， Transmissive
Support Color：16.7M 63%(CIE1931)
Light Source：WLED， 60K hours， With LED Driver
Weight： 1.10Kgs (Typ.)
Designed For： Desktop Monitor,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 20 pinsLVDS (1 ch， 8-bit)， Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C：：
